Auto female crimp terminal Wire Crimp Terminal
Female crimp terminals are used for the connector system. Auto female crimp terminal Wire Crimp Terminal
Model:NDPJ-CT-0001
Send Inquiry
Product Description
Auto female crimp terminal Wire Crimp Terminal
Female crimp terminals are used for the connector system. These female crimp terminals are matte sealed, have a low insertion forceand.
Crimp Terminal Parameter
| Type | Crimp Terminal |
| Pitch | 4.50mm pitch |
| Material | Phosphor Bronze / Brass Tin /Copper Brass |
| Surface | Tin Coating |
| Wire range | 0.1-4.0mm2 |
| Gender | Female |
| Color | Customized |
| Withstand voltage | 1500V AC/min |
| Connector type | Disconnectable Crimp type, Wire to Wire |
| Temperature range | -25℃~85℃ |
| Insulation resistance | ≥1000MΩ min |
| Contact Resistance | Initial Value≤0.01Ω; After Environment Tests ≤0.02Ω |
| Voltage Rating | 300V AC,DC |
| Current rating | 10A AC,DC |
| Service | ODM, OEM |
Crimp Terminal Application
The Female crimp terminal is used for Connecting, suitable for auto and home appliance cable wire lup.

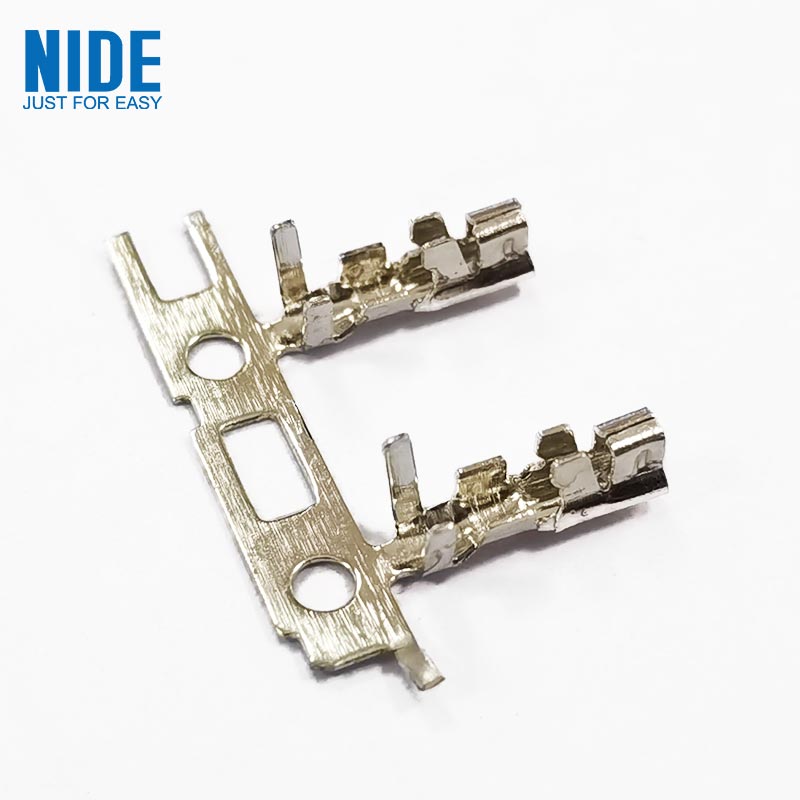

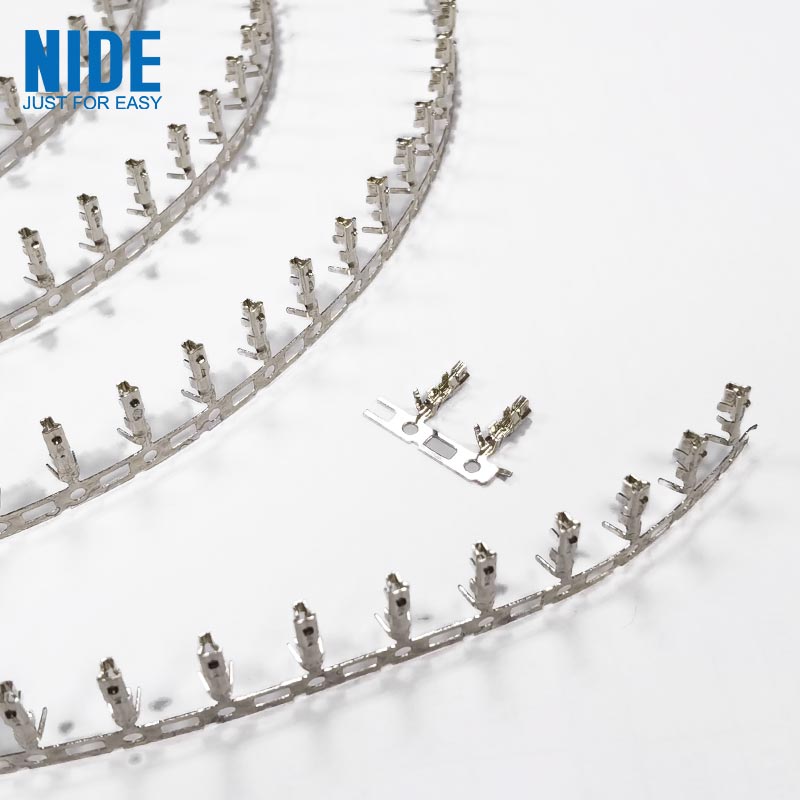

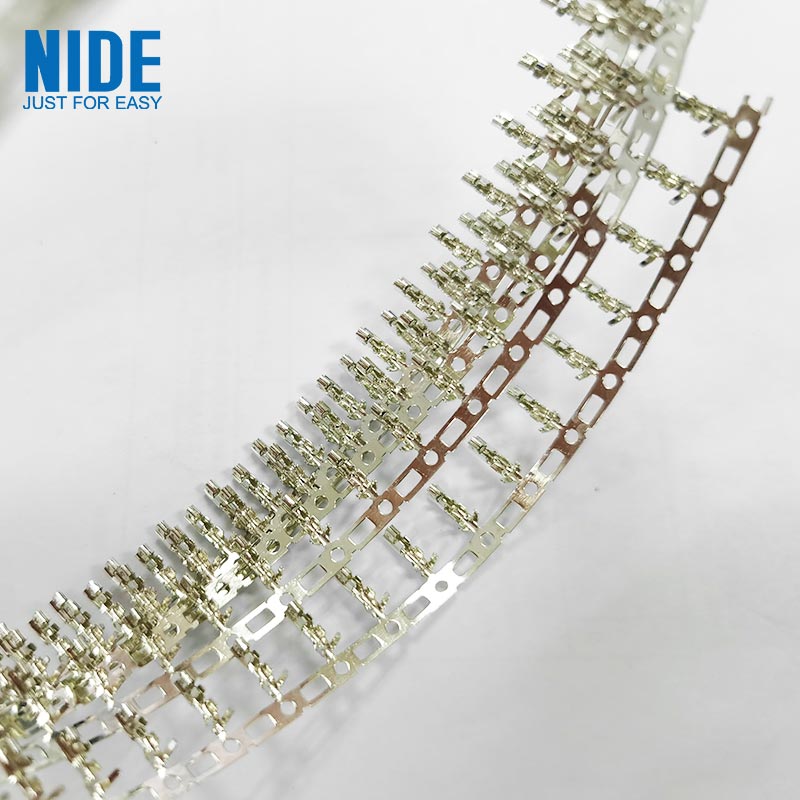

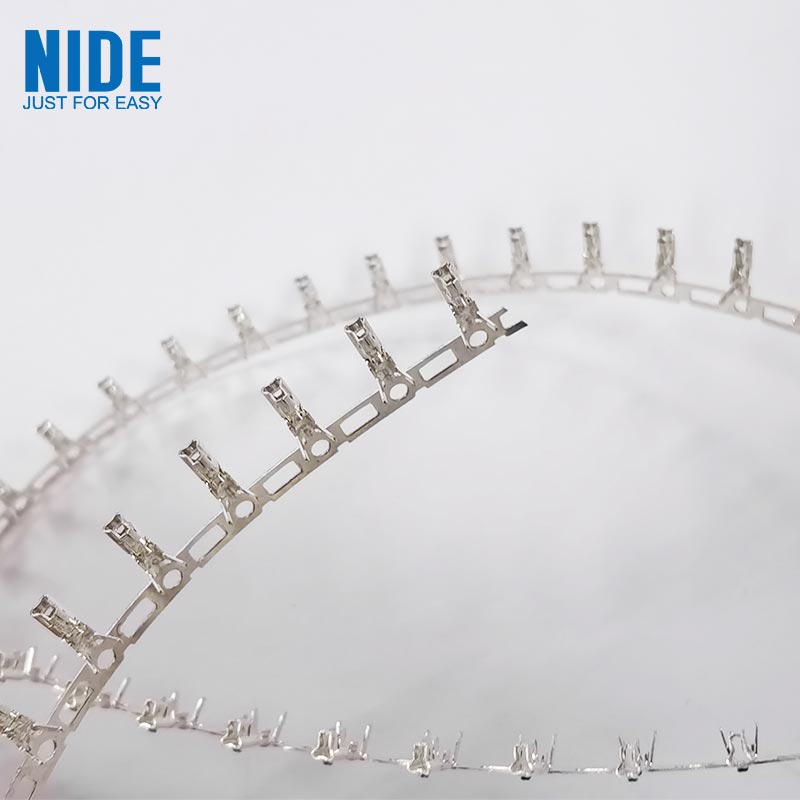

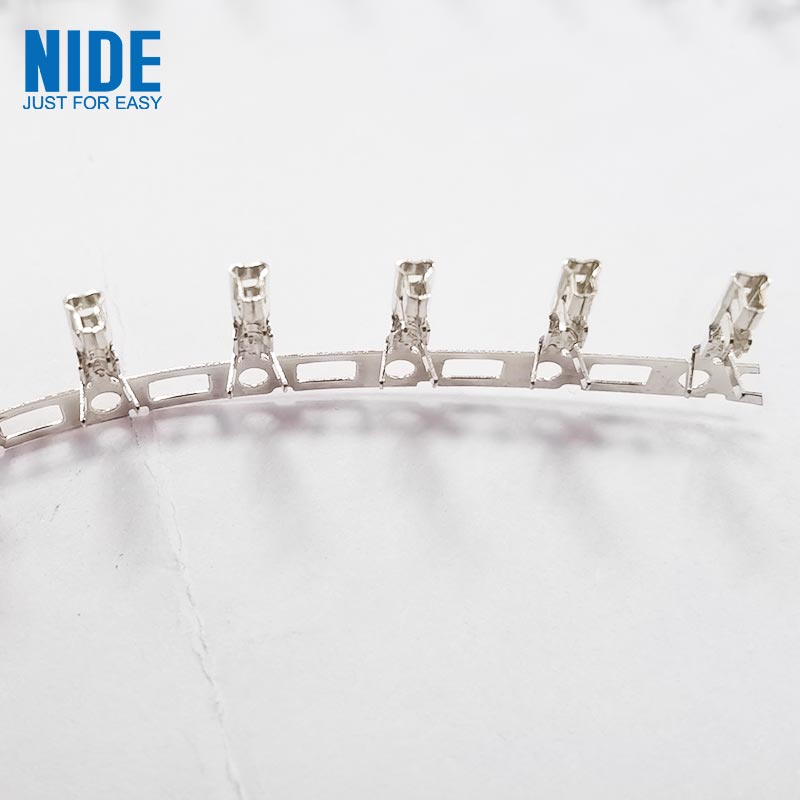

Crimp Terminal Picture
