6641 F Class DMD Insulation Paper For Motor Insulation
6641 F Class DMD Insulation Paper For Motor Insulation
NIDE can supply different types of 6641 F Class DMD Insulation Paper for Motor Insulation, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc.
Send Inquiry
Product Description
6641 F Class DMD Insulation Paper for Motor Insulation
1.Product Introduction

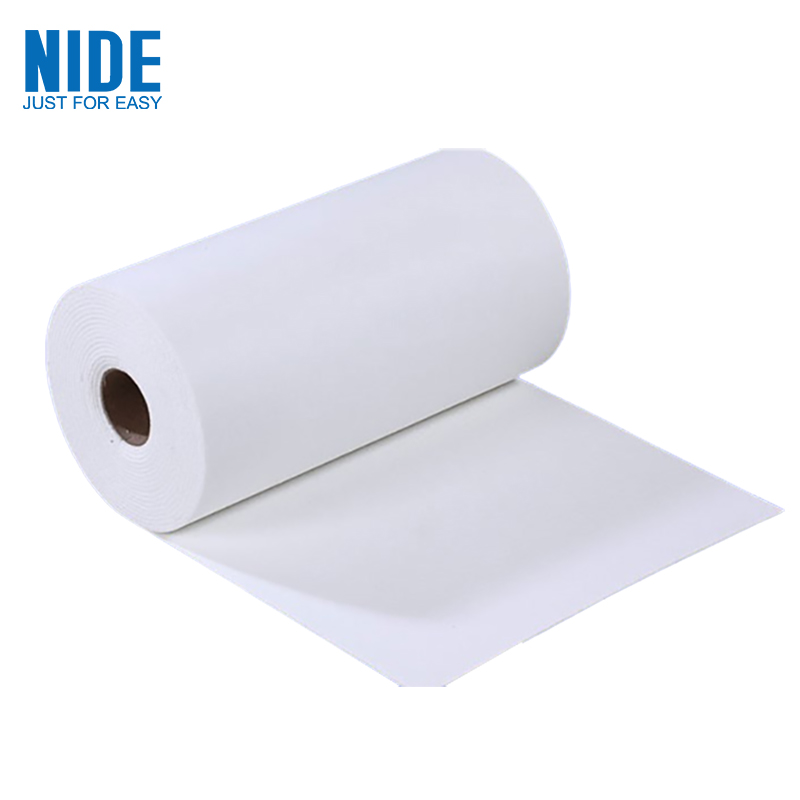

6641 F Class DMD Insulation Paper film electrical motor insulation material is a three-layer composite material made of one layer of polyester film and two electrical polyester fiber nonwovens and glued by F class resin. With good mechanical property and electrical property, polyester non-woven fabric has good adsorption capacity and can absorb resin during impregnation.
2.Product Parameter (Specification)
|
Properties |
Unit |
Parameter |
||||||||||
|
Insulation paper thickness |
MM |
0.13 |
0.15 |
0.18 |
0.20 |
0.23 |
0.25 |
0.30 |
0.35 |
0.40 |
0.45 |
0.50 |
|
Thickness deviation |
MM |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.03 |
±0.03 |
±0.04 |
±0.04 |
±0.05 |
±0.05 |
|
Grammage and deviation |
GSM |
130±13 |
152±15 |
187±19 |
205±21 |
240±24 |
275±27 |
322±32 |
375±38 |
466±47 |
536±54 |
606±61 |
|
Film thickness |
MM |
0.036 |
0.050 |
0.075 |
0.075 |
0.100 |
0.125 |
0.150 |
0.188 |
0.250 |
0.300 |
0.350 |
|
Breakdown voltage |
KV |
≥5 |
≥6 |
≥7 |
≥7 |
≥9 |
≥10 |
≥12 |
≥15 |
≥18 |
≥20 |
≥22 |
|
Tensile strength (MD |
N/CM |
≥60 |
≥90 |
≥110 |
≥120 |
≥140 |
≥170 |
≥200 |
≥270 |
≥340 |
≥360 |
≥390 |
|
Tensile strength (TD) |
N/CM |
≥40 |
≥80 |
≥100 |
≥105 |
≥120 |
≥150 |
≥180 |
≥200 |
≥280 |
≥300 |
≥320 |
3.Product Feature And Application
6641 F Class DMD Insulation Paper is widely used in Motor Insulation slot, phase and liner insulating of motors，Interlayer insulation in the transformer. It is also widely used in automatic coil inserting machine for wedge inserting.
4.Product Details
6641 F Class DMD Insulation Paper for Motor Insulation
It will be better if customer could send us detailed drawing including below information.
1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET,Red Vulcanized Fiber)
2. Insulation material dimension: width, thickness, tolerance.
3. Insulation material thermal class: Class F, Class E, Class B, Class H
4. Insulation material applications
5. Required quantity: normally its weight
6. Other technical requirement.
