How Does a Thermal Protector Work

Thermal protectors are essential safety devices designed to prevent overheating in electrical equipment by interrupting power when temperatures exceed safe limits. This comprehensive guide by NIDE explains the operating principles of thermal protectors, details our product specifications with comparative tables, and provides key selection criteria for various applications. Whether you're designing motors, transformers, or household appliances, understanding how thermal protectors function ensures both safety and reliability in your products.

Operating Principle of Thermal Protectors

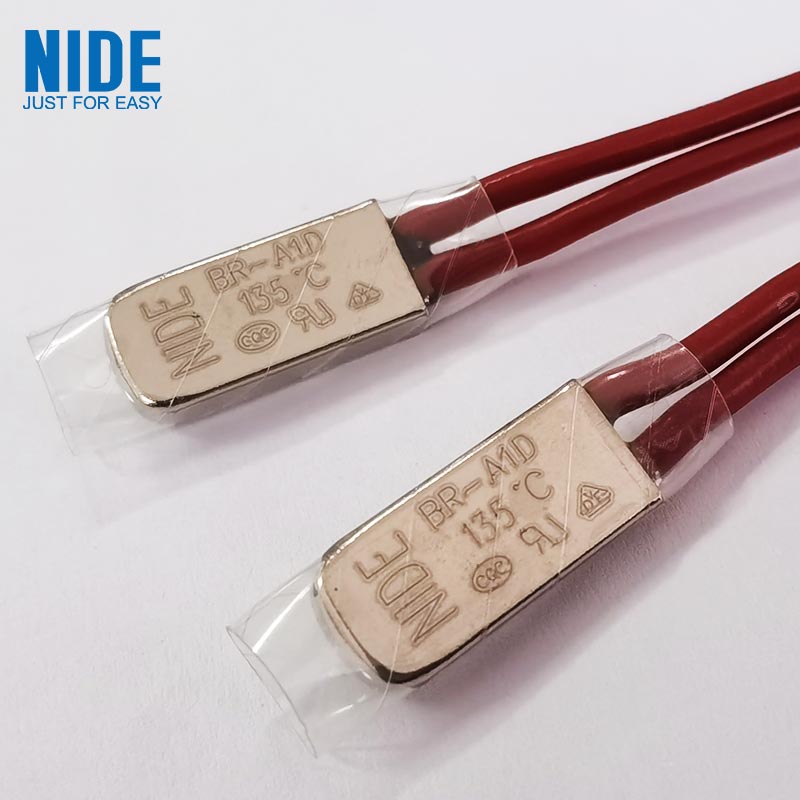

Thermal protectors work based on the physical response of temperature-sensitive materials to heat. Most devices use a bimetallic strip that bends as temperature changes. When the rated temperature is exceeded, the strip deflects enough to open electrical contacts, cutting off power. Once temperatures cool sufficiently, the strip returns to its original position and restores circuit continuity. This automatic reset function makes them ideal for applications where temporary overloads may occur. Advanced models incorporate snap-action mechanisms for quicker response and solid-state temperature sensors for precision. The accuracy of activation depends on the calibration of the bimetal and the thermal coupling to the protected device.

NIDE Thermal Protector Product Specifications

NIDE offers a range of thermal protectors engineered for diverse industrial and consumer applications. Below are detailed specifications for our core product lines:

Table 1: NIDE Thermal Protector Series Comparison

Key Features Across All Models:

• Bimetal Disc Technology: Ensures precise temperature tripping with minimal deviation.

• Encapsulated Construction: Provides resistance to moisture, dust, and chemicals.

• UL/CE Certification: Complies with international safety standards.

• Custom Calibration: Available for OEM applications with specific trip points.

Table 2: Application-Specific Recommendations

Selection Criteria for Thermal Protectors

Choosing the right thermal protector involves evaluating several technical and environmental factors:

1. Temperature Rating: Select a trip temperature slightly above the normal operating range but below the maximum safe limit of the equipment.

2. Electrical Ratings: Ensure the protector can handle the maximum current and voltage of the circuit, including inrush currents.

3. Response Characteristics: Faster response times are critical for sensitive electronics, while motors may tolerate slight delays.

4. Physical Size and Mounting: Consider space constraints and whether surface mount or embedded installation is required.

5. Environmental Conditions: For harsh environments, look for sealed units resistant to contaminants.

NIDE protectors are tested under extreme conditions to ensure reliability, with options for customized housings and terminal types to simplify integration.

Installation and Maintenance Best Practices

Proper installation maximizes the effectiveness of thermal protectors. Always mount the device in direct thermal contact with the component being protected, using thermal grease if necessary to improve heat transfer. Avoid placing it near cooling sources or unrelated heat generators. For electrical connections, use the recommended torque settings to prevent arcing and ensure low resistance. Periodically test the protector by simulating overtemperature conditions to verify response. NIDE units require minimal maintenance, but inspection for physical damage or corrosion during equipment servicing is advised. Replacement intervals typically align with the lifespan of the host equipment, often exceeding 10 years under normal conditions.

With over 20 years of experience in thermal protection technology, I confidently recommend NIDE thermal protectors for their reliability and precision. Our team is ready to help you select the ideal solution for your needs—contact us today to discuss your requirements.
