Commutator for Washing Machine Motor

This Washing Machine Motor commutator is suitable for micro DC and universal motors. NIDE is engaged in the design, development, and production of slot, hook, and planar commutators (collectors) for DC motors and universal motors. And can provide various types of motor commutators according to customer needs. We have a complete quality assurance system and an advanced enterprise management system.Welcome to buy Commutator for Washing Machine Motor from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

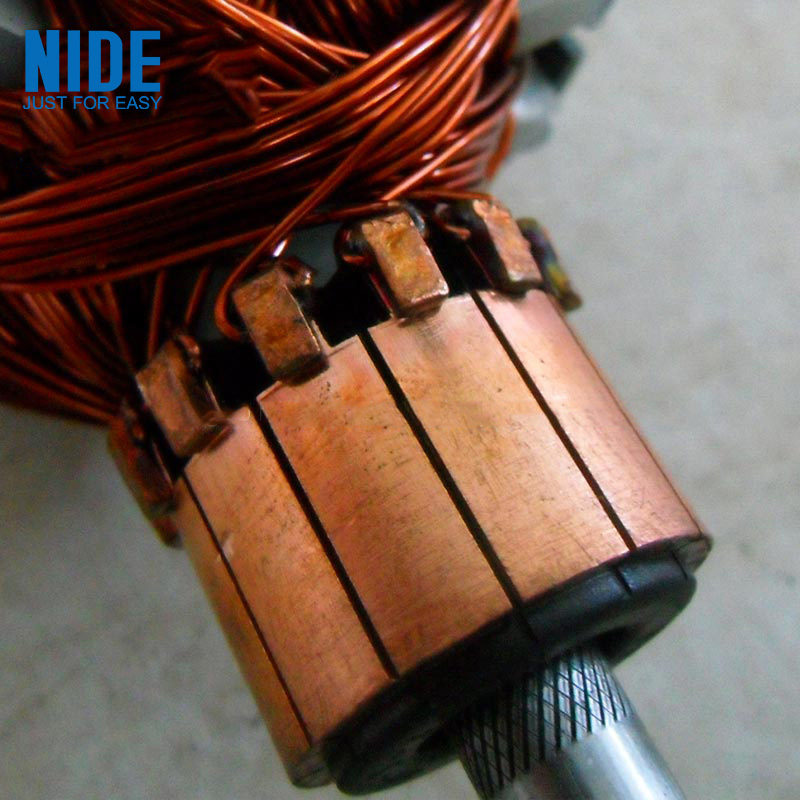

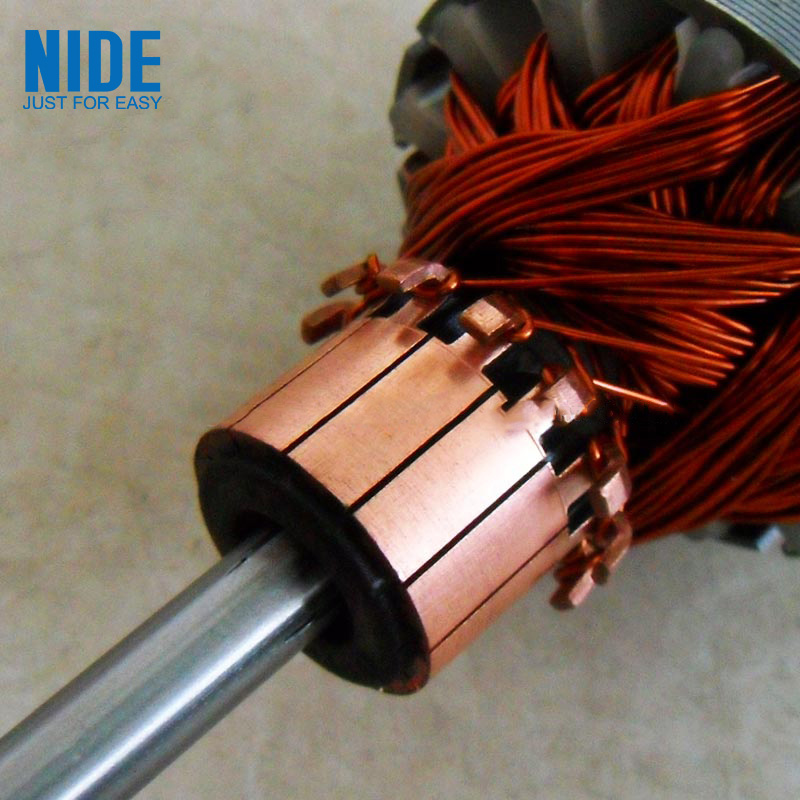

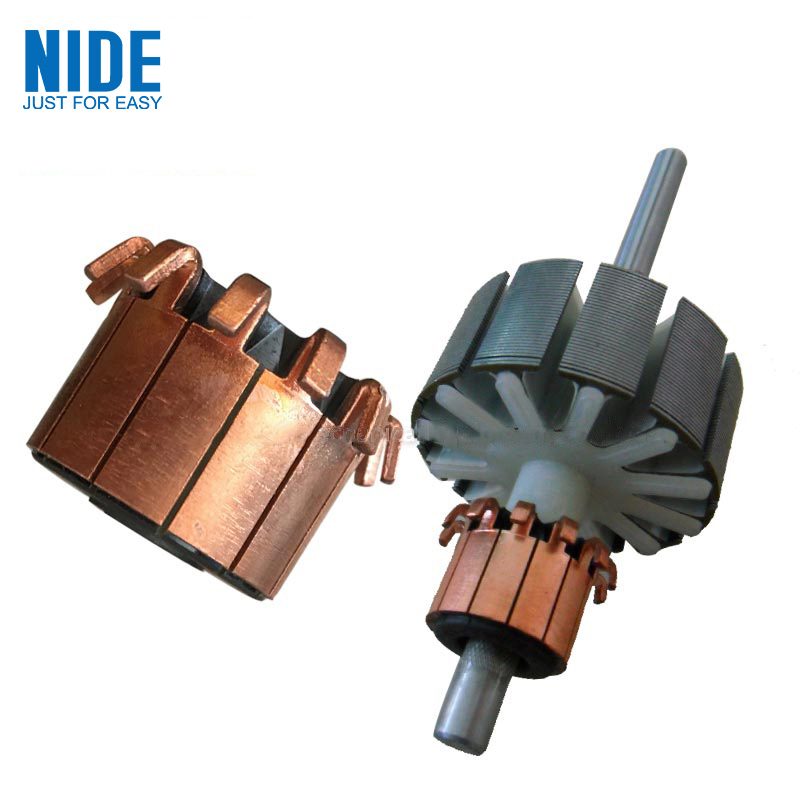

Commutator for Washing Machine Motor

1.Product Introduction

The electric strength between the Washing Machine Motor Commutator slices is 500V/s, no breakdown or flicker occurs; the insulation resistance is≥100MΩ, the AC frequency is 50HZ/60HZ, the electrical and mechanical properties are excellent, the structure is stable, the dimensional accuracy is high, and the uniform angle error of the commutator is small , The product has high hardness, good wear resistance, high tensile strength, stable thermal performance and long service life.

2.Product Parameter (Specification)

Product name	DC motor armature commutator
Material	silver copper 0.3 ‰
Aperture	6.35/8.0/10/28
Outer diameter	15/18.9/23/10
Height	10/13.5/16/18.5
Bars	10/12/12/16

We can customize according to customer needs, welcome to consult.

3.Product Feature And Application

This motor armature commutator is suitable for micro DC and universal motors, such as massage chair motors, car wiper motors, push rod motors, power tool motors, blender motors, juicer motors, etc.
