Drum washing machine tachometer coil for motor speed measuring coil

Drum washing machine tachometer coil for motor speed measuring coil

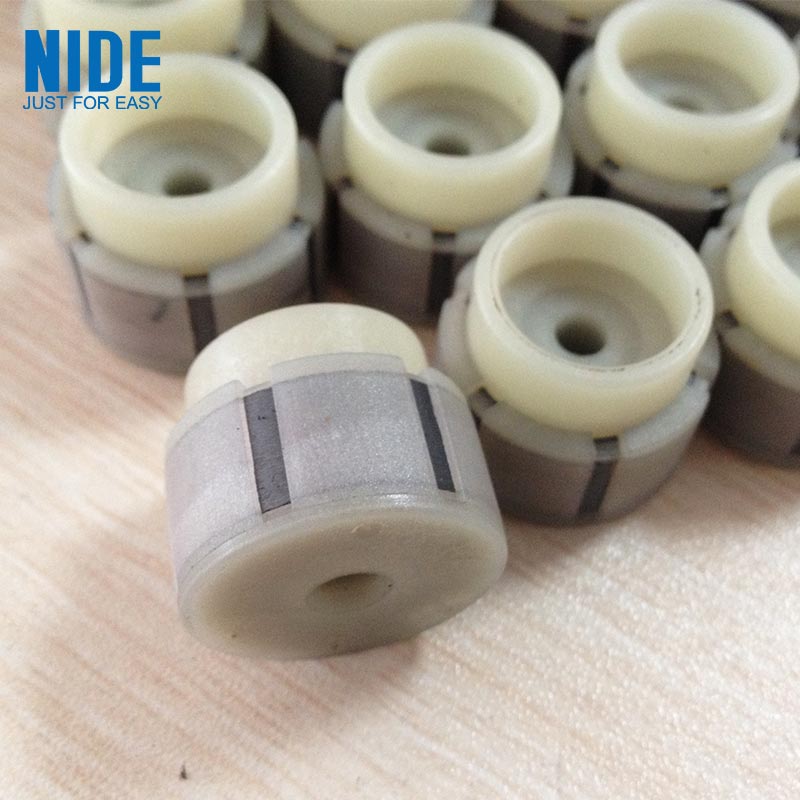

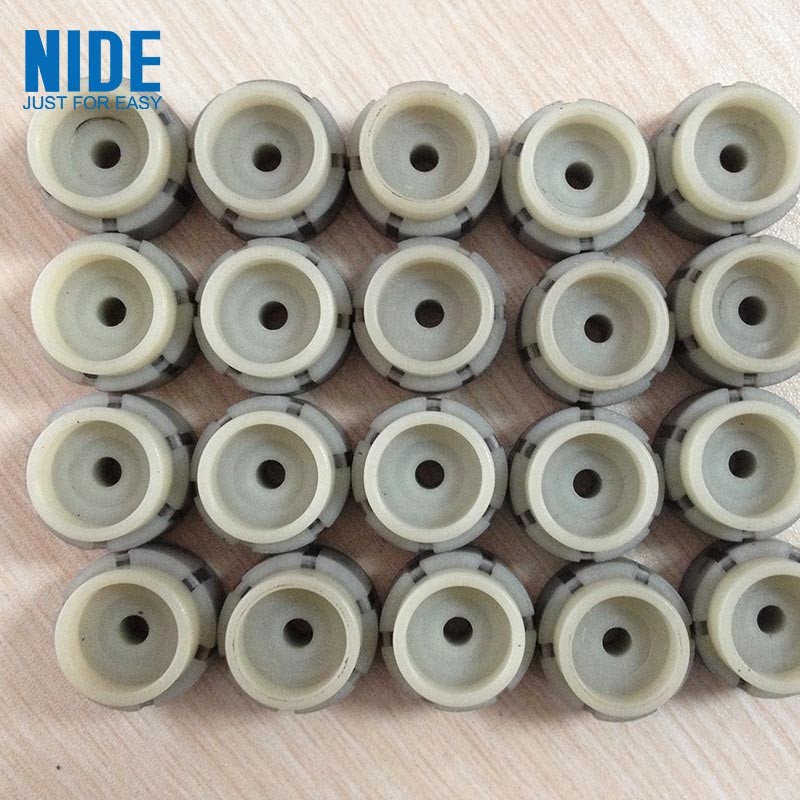

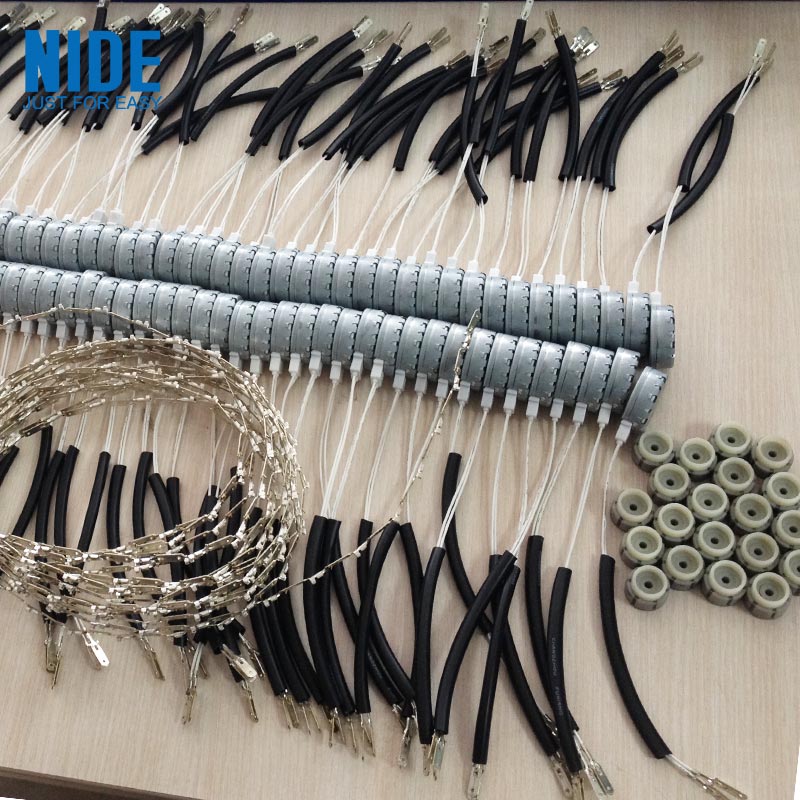

This tachometer speed measuring coil is suitable for drum washing machine speed measuring device, Hall sensor, motor speed measuring coil, sensor accessories, etc.

Tachometer coil technical requirements
Size: 22.5*40.7*13.4,
Terminal width: 6.3mm
1. When the temperature is 20°C, the resistance is 184+5% ohm
2. The stator insulation resistance should be > 10MQ
3. The pulling force between the lead wire and the terminal should be ≥60N
4. All raw materials should meet RoHS environmental protection requirements
5. Plastic flame retardant (V0) should meet the UL standard
6. High voltage resistance 2.2KV, 50Hz, 1 second test should have no penetration phenomenon
7. When the voltage reaches 1200V, there is no discharge of inter-turn surge
8. Voltage test: rpm300> 0.75; rpm16675 <34V

The tachometer coil plays a important role in the washing machine system. The sensor is made in the form of a ring on which there are wires. When the motor is in the tacho, due to the magnetic field, voltage appears. The nominal value of the generated voltage is directly related to the speed of the motor - the faster the engine spins, the stronger the voltage that appears in the ring.The tachometer coil allows you to accurately determine the speed of rotation of the washing machine electric motor.
