Electrical Commutator For Automobile

The Electrical commutator is suitable for automobile starter. NIDE can provide more than 1,200 different motor commutations. We have been manufacturing commutators for more than ten years and can provide customers with competitive prices and high-quality commutators.Welcome to buy Electrical Commutator For Automobile from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

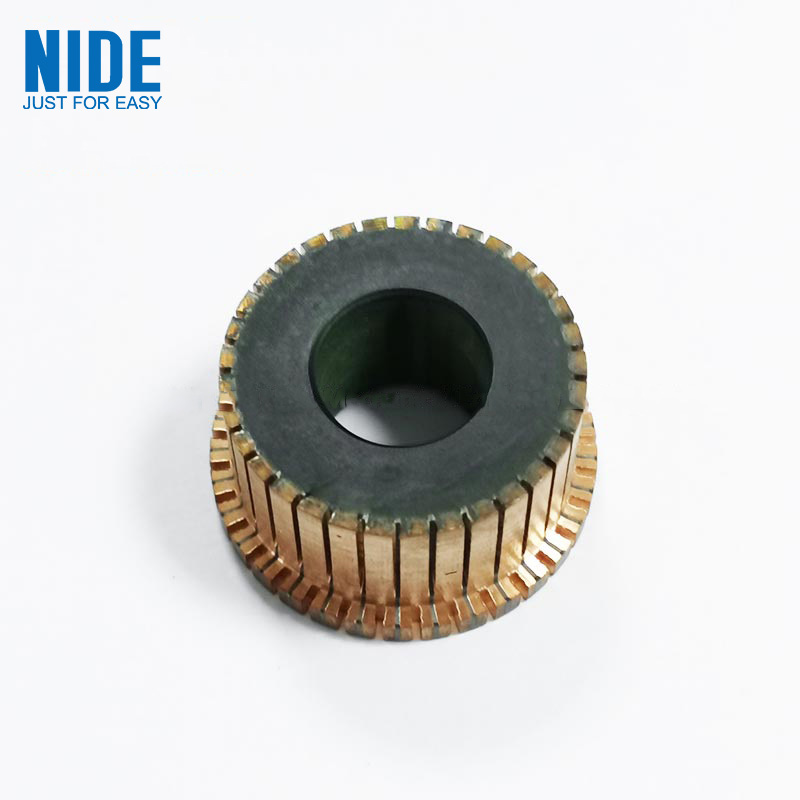

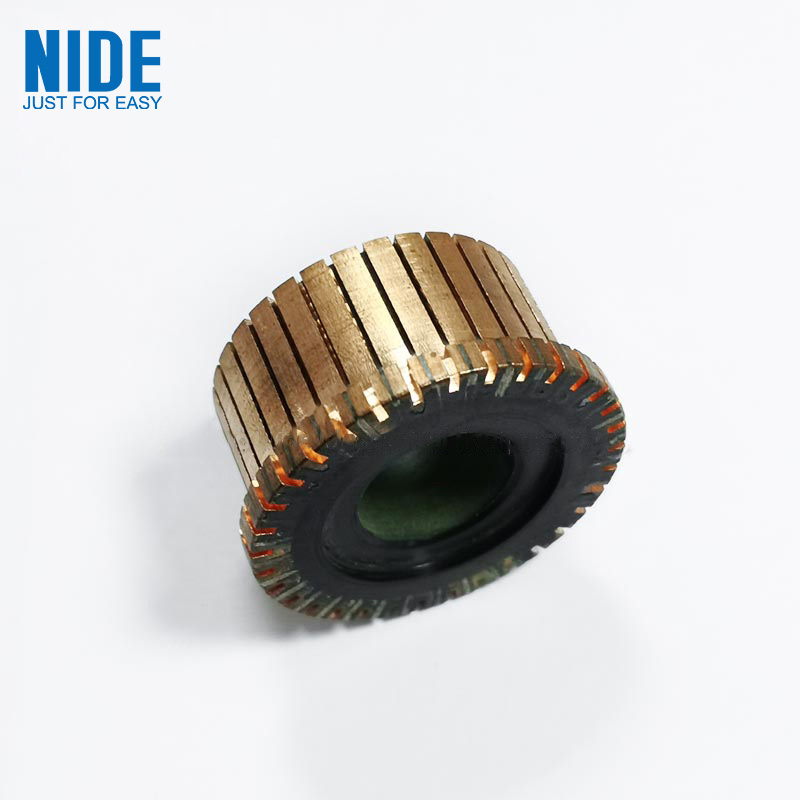

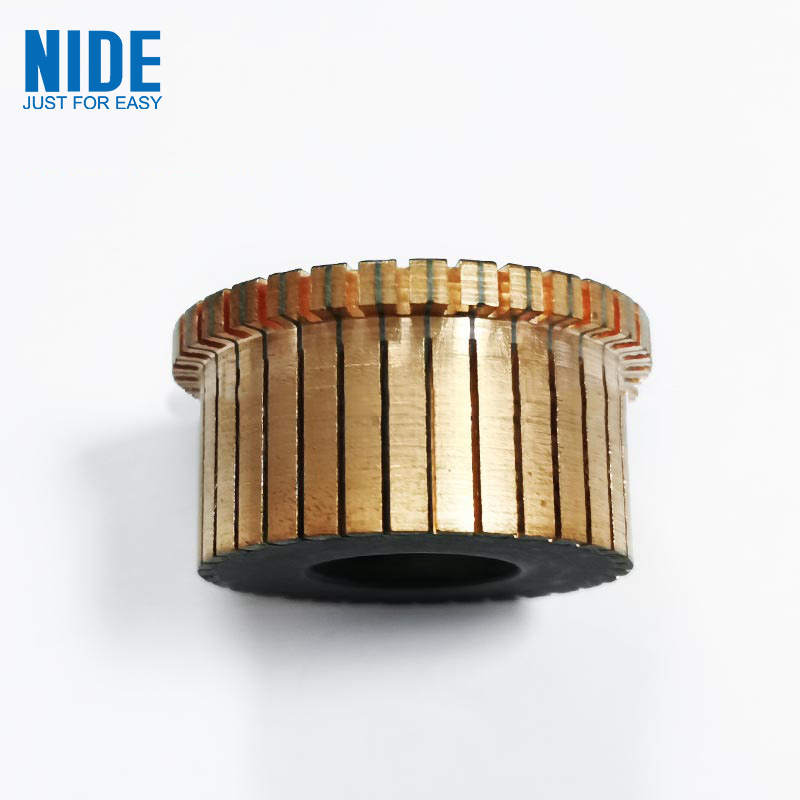

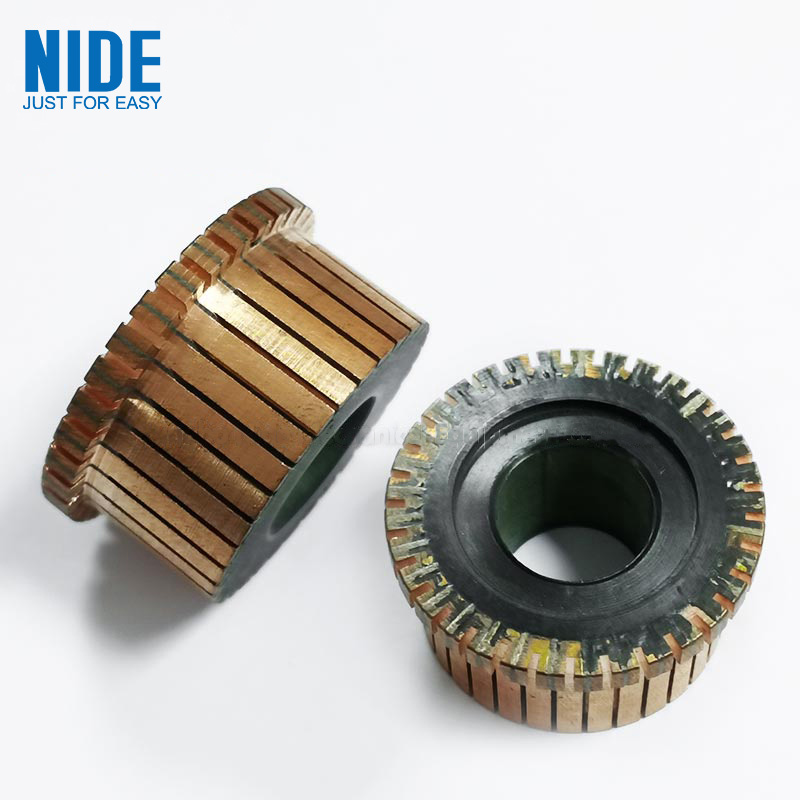

Electrical commutator for Automobile

1. Product Introduction

The Electrical commutator is suitable for automobile starter. It is found in the back of the motor's housing and forms part of the armature assembly.

Each segment or bar on the commutator conveys current to a particular coil. To enhance efficiency, the contact surfaces are made from a conductive material, usually copper. The bars are also separated from each other using a non-conductive material such as mica. This helps prevent shorting.

2.Product Parameter (Specification)

Part name	Starter commutator / collector
Material	Copper, glass fiber
Outer diameter	33
Inner hole	22
Total height	27.9
Runtime	25.4
Number of pieces	33
Custom processing:	Yes
Scope of application:	Starter accessories, motor components

3.Product Feature And Application

This Electrical commutator is suitable for automobiles, trucks, electric vehicles, and new energy vehicles.

4.Product Details

Electrical commutator for Automobile is Usually round and segmented, its main function is to transfer current to the armature in the required sequence. That is made possible by the segments or copper bars on which the motor brushes slide.
