Electrical Insulating Paper For Motor Winding

Electrical Insulating Paper For Motor Winding It is a two-layer composite material composed of a layer of polyester film and a layer of electrical insulating paper, bonded with F-class resin. It has good dielectric properties and is suitable for the insulation between slots and turns of small motors. Pad insulation.

Model:NDPJ-JYZ-PM

Send Inquiry

Product Description

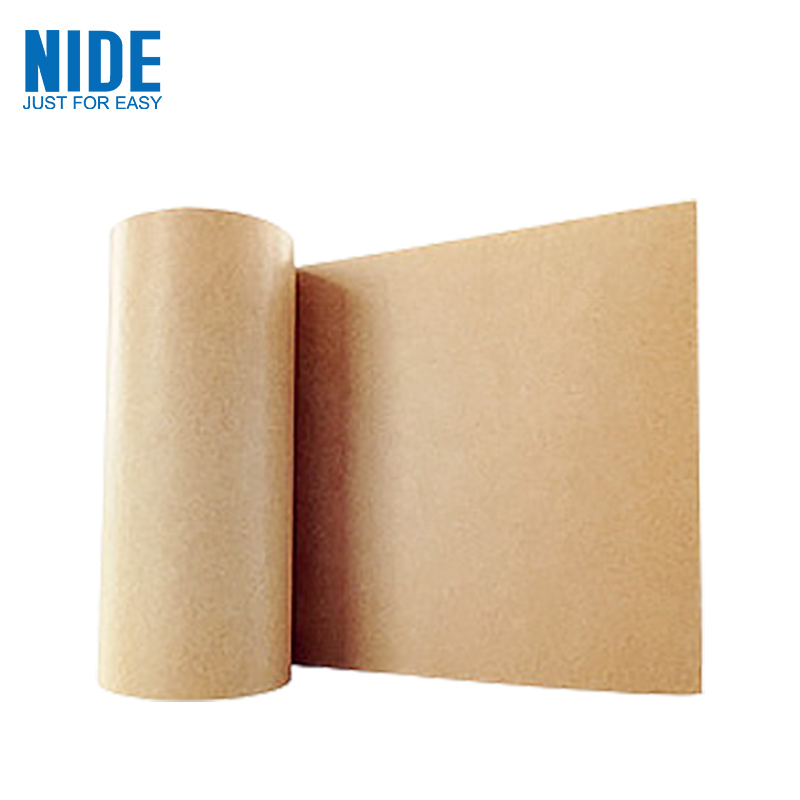

Electrical Insulating Paper For Motor Winding



1.Product Introduction

DM Electrical Insulation Paper. It is a two-layer composite material composed of a layer of polyester film and a layer of electrical insulating paper, bonded with F-class resin. It has good dielectric properties and is suitable for the insulation between slots and turns of small motors. Pad insulation.




2.Product Parameter (Specification)

Thickness

0.13mm-0.47mm

Width

5mm-100mm

Thermal   class

F

Working   temperature

155degree

Color

Yellow


3.Product Feature And Application

Used in low-voltage motors Inter-slot and inter-phase insulation, or used as inter-layer insulation in transformers, the material has high stiffness and is suitable for mechanical off-line processes.




4.Information needed for insulation paper inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.
