Graphite Carbon Brush For Power Tools

NIDE specializes in the production and sale of various carbon brushes, carbon brush holders, slip rings, carbon rods, high-purity graphite, carbon chips, strips and motor accessories, etc. thousands of carbon brushes. The company has strong scientific and technical personnel and high-quality high-precision equipment.The following is an introduction to Graphite Carbon Brush For Power Tools, I hope to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

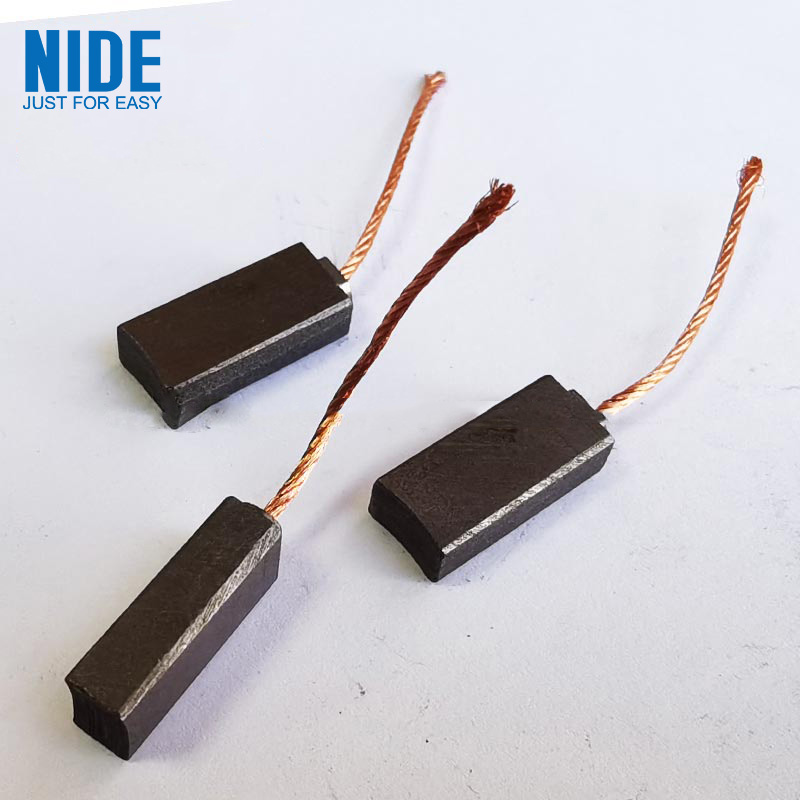

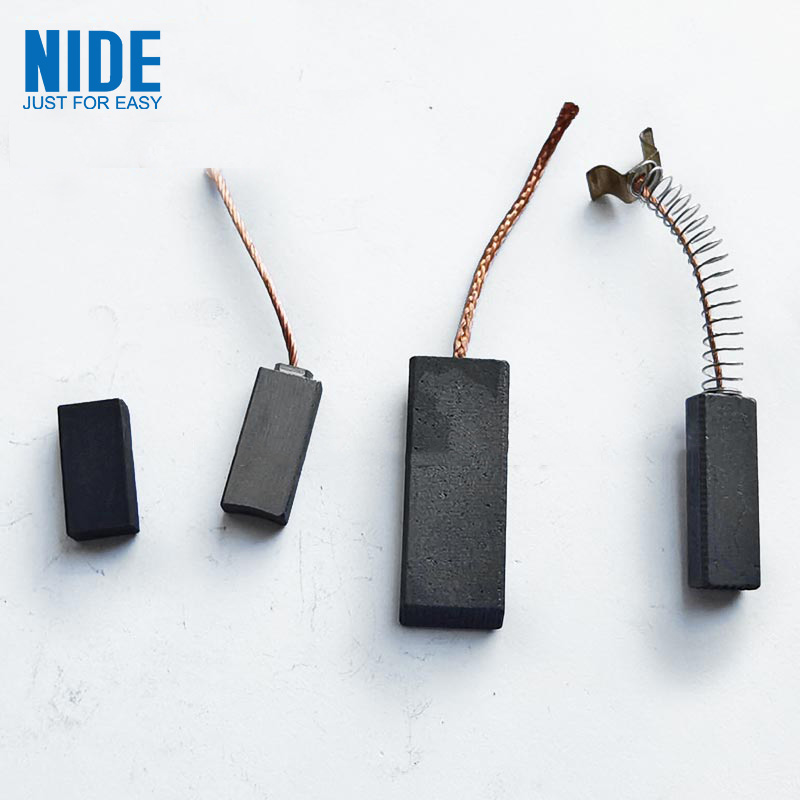

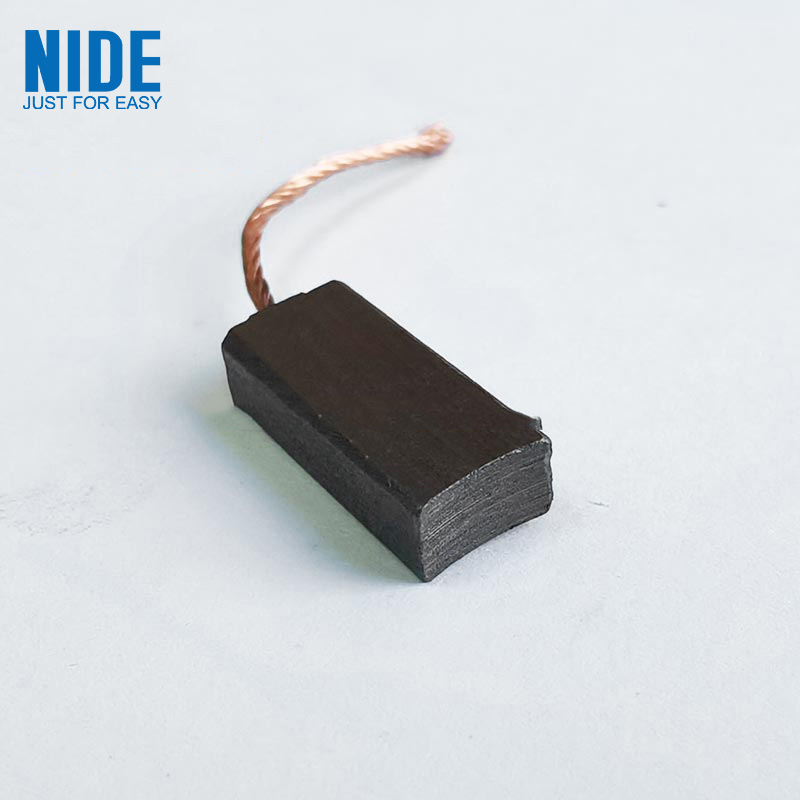

Graphite Carbon brush for Power Tools

1.Product Introduction

The Power Tools graphite Carbon brush is composed of carbon, it is a high temperature resistant material, and its melting point reaches 3652°C. With this high temperature resistant feature, graphite can be processed into a high temperature resistant chemical utensil crucible.The conductivity of graphite is very good, more than many metals, hundreds of times that of non-metals, so it is made into conductive parts such as electrodes and carbon brushes.

2.Product Parameter (Specification)

Material	Model	resistance	Bulk density	Rated current density	Rockwell hardness	loading
Graphite and Electrographite	D104	10±40%	1.64±10%	12	100(-29%~+10%)	20KG
Graphite and Electrographite	D172	13±40%	1.6±10%	12	103(-31%~+9%)	20KG
Advantage: good lubricity and duration
Application of D104: suitable for 80-120V DC motor, small water turbine generator motor and turbine generator motor
Application of D172:: suitable for big type water turbine generator motor and turbine generator motor

3.Product Feature And Application

The graphite carbon brushes are mainly widely used in electrical Power Tools motor equipment. They are used to transmit signals or energy to the fixed and rotating parts of some motors or generators. The shape is rectangular, and the metal wire is installed in the spring. The carbon brush is A kind of sliding contact, so it is easy to wear and needs to be replaced and cleaned regularly.
