Graphite Carbon Brush For Toy Motors

NIDE is professional in manufacturing Graphite Carbon brush for Toy Motors. We have been in this field for many years, and our products cover a wide range and application. NIDE team will provide customers with advanced technology, first class quality and best service; will be always at your service.

Send Inquiry

Product Description

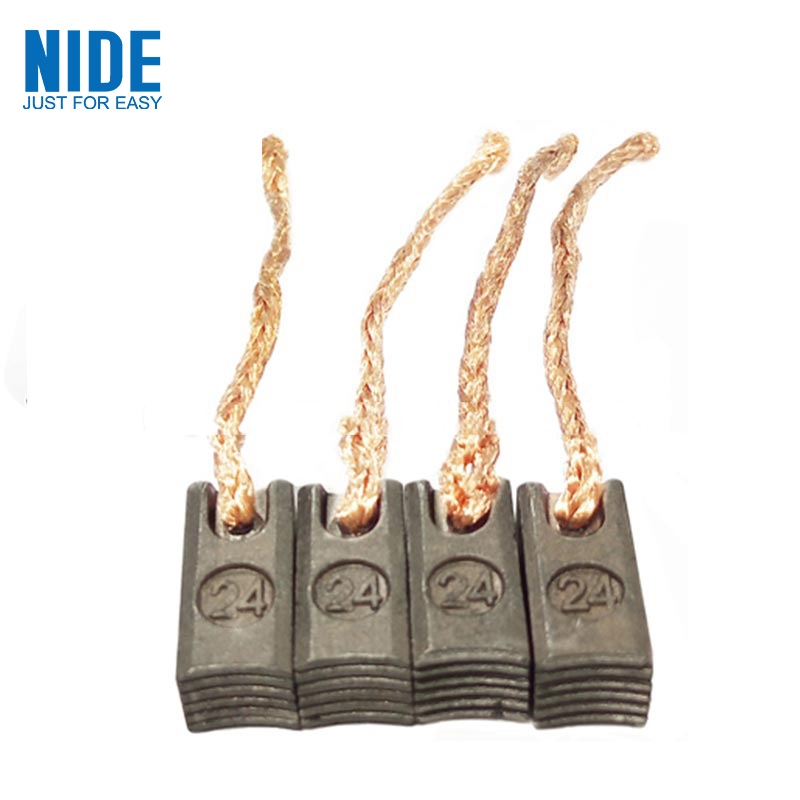

Graphite Carbon brush for Toy Motors

1.Product Introduction

Selecting the correct Graphite Carbon brush is important for commutator performance, maximum. The carbon brushes achieve improved reliability in DC motors forToy Motors.

2.Product Parameter (Specification)

Material	Model	resistance	Bulk density	Rated current density	Rockwell hardness	loading
Resin and graphite	R106	990±30%	1.63±10%	10	90(-46%~+40%)	80KG
	R36	240±30%	1.68±10%	8	80(-60%~+30%)	80KG
	R108	1700±30%	1.55±10%	12		80KG
	R68	650±30%	1.65±10%	6	75(-60%~+20%)	85KG
Advantage: high resistance; it can cut off the current in the crosswise.
Application: suitable for AC motor

3.Product Feature And Application

The Graphite Carbon brushes are widely used in the toy motor, industrial, transportation, mining and aerospace industries on both AC and DC machinery. Contents. Grade Selection.
