Hair Dryer Motor Commutator

As a professional Hair Dryer Motor Commutator manufacturer and supplier, NIDE can provide different kinds of commutators. Our commutators are mainly used for windshield wipers, power windows, power seats, ABS systems, and central locks. , Washing machine, vacuum cleaner, mixer and blender, waxing machine and hair dryer, drilling machine, electric screwdriver. Angle grinders, electric compressors, cameras and camcorders, DVDs and VCDs, fax machines, printers, electric doors, vending machines, fitness equipment and power tools.

Send Inquiry

Product Description

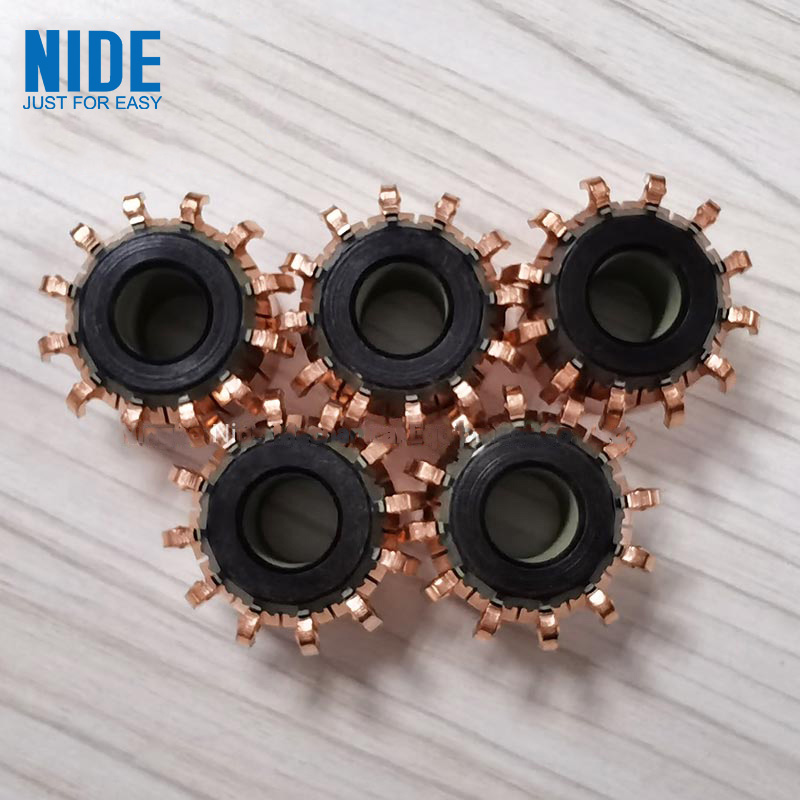

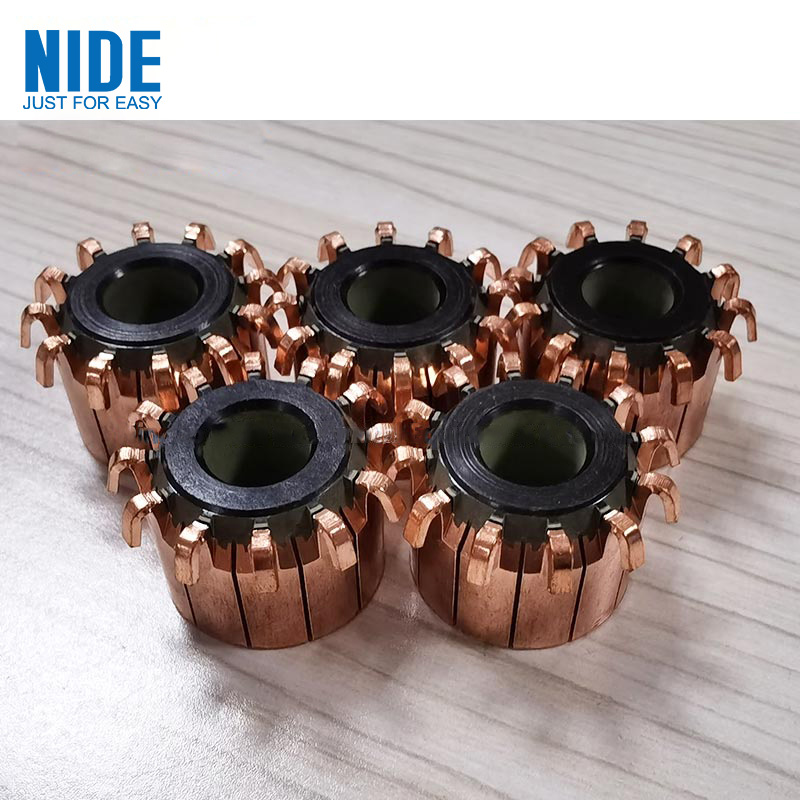

Hair Dryer Motor Commutator


1.Product Introduction


The Hair Dryer Motor Commutator includes a mold body pressed by bake lite powder. The mold body is provided with a mica groove. The hook-type commutator is composed of a mold body, a commutator piece, a reinforcing ring and an inner sleeve. The mold body will change The direction piece, the reinforcement ring and the inner sleeve are fixedly connected.




2.Product Parameter (Specification)


Model No.

OD
(mm)

ID(mm)

Total height
(mm)

Segment Length
(mm)

Hook/Riser dia.
(mm)

Bar No.

S-03086

28

φ11

17

14

28.7

24

S-03086A

28

φ12

17

14

28.7

24

S-03087

31.5

φ11

24

21

32.5

28

S-03088

24.5

φ12

18

18

30.5

12

DZQD-RZ32-089

25.5

φ10

18

15.5

30.2

24

DZQD-RZ32-089A

25.5

φ11

18

15.5

30.2

24

DZQB-RZ32-090

29.5

φ12

20.5

16.5

31.2

24

DZQB-RZ32-090A

29.5

φ12

20.5

16.5

31.2

24

DZQD-RZ32-093

27.5

φ11

20.8

18

33

24

S-03094

23

φ9

14

12

24

24

S-03095

24.5

φ12

16.1

16.2

31.5

19

S-03097

22.5

φ9

17.5

17.2

30

12

S-03097A

22.5

φ9.1

17.5

17.2

30

12

S-04098

28

φ10

19

18

33

24

DZQD-RZ31-098A

28

φ10

19

18

33

24

DZQD-RZ31-098B

28

φ9.5

19

18

33

24

S-04098C

28

φ12

19

18

33.1

24

S-04099

37.5

φ13

30.5

24.8

42

32


3.Product Feature And Application


The Hair Dryer Motor Commutators are used in DC motors , generators and universal motors.

Ensure that the current in the rotor windings always flows in the same direction.

In a motor, a commutator applies an electric current to the windings. A steady rotating torque is produced by reversing the current direction in the rotating windings each half turn.

In a generator, the commutator reverses the current direction with each turn serving as a mechanical rectifier to convert the alternating current from the windings to unidirectional direct current in the external load circuit.




4.Product Details


The Hair Dryer Motor Commutators are a rotary electrical switch that periodically reverses the direction of the current between the rotor and the external circuit.
