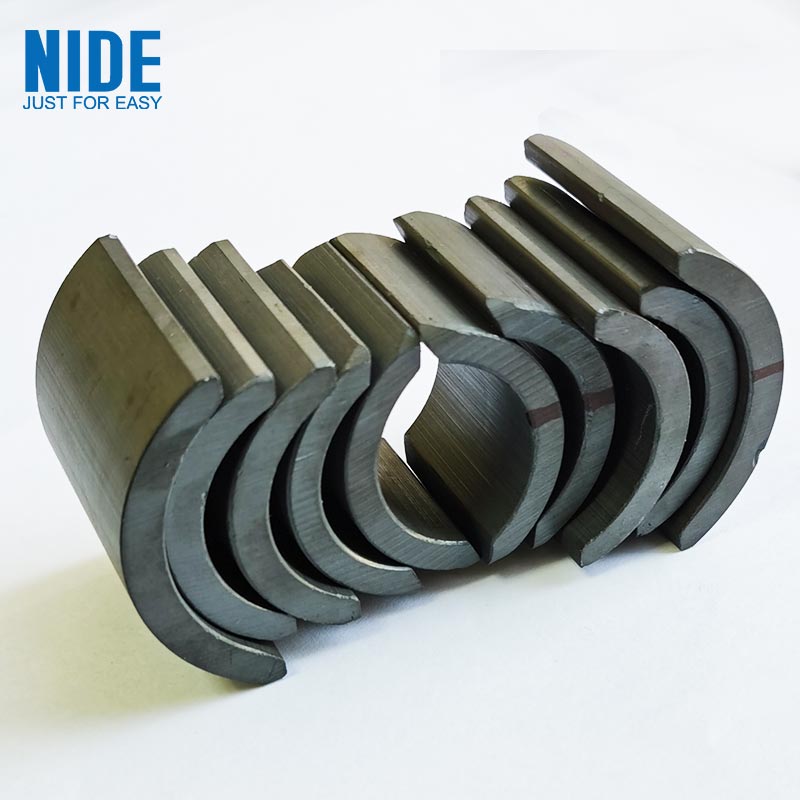

Permanent Arc Ferrite Magnet

NIDE has more than ten years of experience in exporting Permanent Arc Ferrite Magnets. There are rings, cylinders, squares, and other specifications complete, with strong magnetic, permanent magnet characteristics. The products are mainly divided into ferrite magnets and NdFeB magnets.

Send Inquiry

Product Description

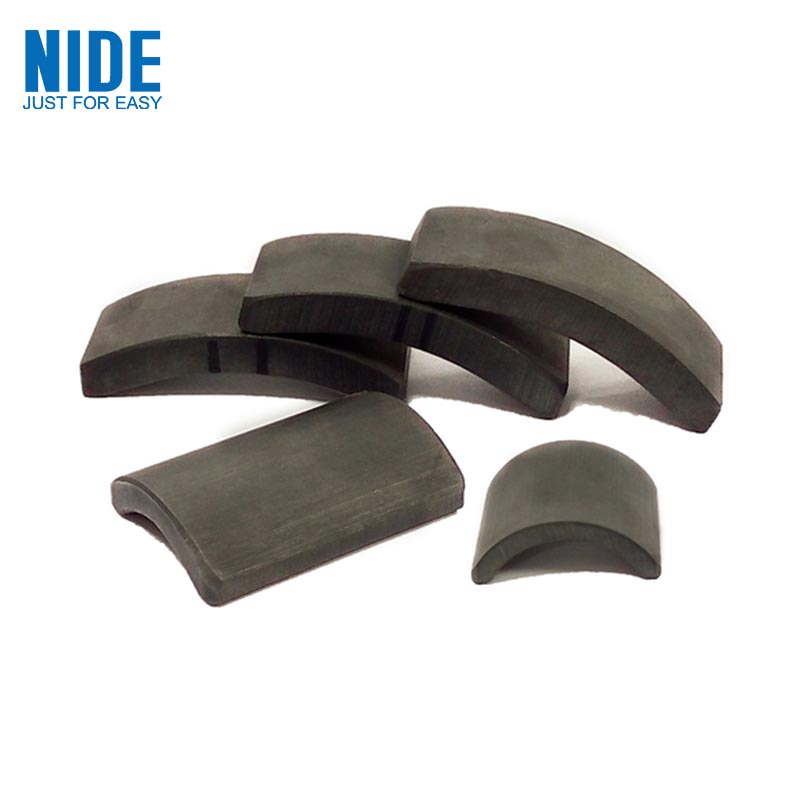

Permanent Arc Ferrite Magnet



1.  Product Introduction


Permanent Arc Ferrite Magnet: It is manufactured by ceramic process method. The texture is relatively hard and it is a brittle material. Because ferrite magnet has good temperature resistance, low price and moderate performance, it has become the most widely used permanent magnet.

Ferrite magnets are sintered permanent magnetic materials composed of barium and strontium iron. In addition to strong anti-demagnetization properties, this magnetic material has the advantage of low cost. Ferrite magnets are hard and brittle, requiring special machines

machining process. Because the magnets of the opposite sex are oriented along the manufacturing direction, they must be magnetized in the direction taken, while the magnets of the same sex can be magnetized in any direction because they are not oriented, although the pressure surface is often the smallest side.

Slightly stronger magnetic induction was found. The magnetic energy product ranges from 1.1MGOe to 4.0MGOe. Due to its low cost, ferrite magnets have a wide range of applications, from motors, speakers to toys and handicrafts.

It is the most widely used permanent magnet material.

Ferrite is divided into permanent ferrite, soft ferrite and microwave ferrite. Permanent magnet ferrites include barium ferrite and strontium ferrite. Soft ferrite is divided into manganese-zinc ferrite, nickel-zinc ferrite, magnesium-zinc ferrite, micro-

Wave ferrite includes yttrium ferrite and the like. There are also hexagonal ferrite and so on.




2.Product Parameter (Specification)


Magnets for electric tools are applicable for 775,750,550,540 series.

Ferrite Magnet Grade Equivalent


Item

Grade

Br T(GS)

HCB

kA/m(kOe)

HCJ

kA/m(kOe)

(BH)  max

kJ/m³(MGOe)



IEC standard



IEC60404-8-1: 2001



Hard ferrite 32/25 SI-1-9

≥0.41

≥240

≥250

≥32.00

≥4100

≥3016

≥3142

≥4.02

Hard ferrite 24/35 SI-1-10

≥0.36

≥260

≥350

≥24.00

≥3600

≥3267

≥4398

≥3.02

Hard ferrite 25/38 SI-1-12

≥0.38

≥275

≥380

≥25.00

≥3800

≥3456

≥4775

≥3.14

Hard ferrite 31/30 SI-1-13

≥0.41

≥295

≥300

≥31.00

≥4100

≥3707

≥3770

≥3.896



NIDE

Standard



Q/74690217-4.1-2004



JC-Y3932

0.380-0.400

230-275

235-290

27.8-32.5

(3800-4000)

(2890-3456)

(2953-3644)

(3.49-4.10)

JC-Y3939

0.385-0.4000

270-290

280-320

28.5-31.8

(3800-4000)

(3391-3644)

(3518-4021)

(3.58-4.00)

JC-Y4041

0.395-0.415

275-295

310-340

28.2-32.0

(3950-4150)

(3456-3707)

(3895-4272)

(3.54-4.02)

JC-Y4127

0.400-0.424

200-225

205-228

30.0-33.6

(4000-4240)

(2514-2827)

(2577-2865)

(3.77-4.22)

JC-Y4231

0.410-0.430

220-260

255-270

31.8-35.5

(4100-4300)

(2765-3267)

(2827-3391)

(4.00-4.46)

JC-Y3744

0.360-0.380

265-288

330-360

24.0-28.0

(3600-3800)

(3330-3620)

(4147-4524)

(3.02-3.53)

JC-Y3849

0.370-0.390

271-305

370-400

26.0-30.2

(3700-3900)

(3405-3833)

(4649-5026)

(3.27-3.80)

JC-Y4240

0.410-0.430

291-314

306.1-330

32.0-35.4

(4100-4300)

(3657-3946)

(3846-4147)

(4.02-4.45)



3.Product Feature And Application


Permanent Arc Ferrite Magnets are widely used: permanent magnet motor, wind power energy, magnetic power machine, automobile industry, audio-visual equipment, electronic industry, IT information, medical equipment, mining equipment, industrial automation, sports equipment, power tools, electrical appliances, clocks, glasses, toys, LED lighting, security equipment, luggage and leather goods, computer and mobile phone protective covers, hardware and plastics and other fields.



4.Product Details
