3 Wires 17AM Thermal Protector

NIDE specializes in exporting various types of 3 Wires 17AM Thermal Protector. The 17AM temperature current thermal protector for drum washing machine are widely used in motors, water pumps, fans, cooling fans, power supplies, electric welding machines, battery packs, transformers, ballasts, lighting equipment, and electric heating products for household appliances. Overcurrent thermal protection field

Model:NDPJ-RBHQ-66

Send Inquiry

Product Description

3 Wires 17AM Thermal Protector

The 17AM three wires Thermal protector is 10A, 135±15⁰C on, 150±5⁰C off, max.500V.

17AM thermal protector prevents overheating in a variety of household、industrial and commercial products. We can produce various lead wires to meet customer application needs for overall length, wire type, wire size, terminated connection and stripped length requirements. It is a miniature, snap-acting, thermally operated device that is a proven performer in protection technology.

3 Wires 17AM Thermal Protector Data

Product name:	Series Thermal Protector With 3 Wires
Type:	17AM 150 Degree Temperature Switch ;
Color:	White
Size:	Normally Closed
wire length :	>10cm
wire dia:	>0.5mm
Contact resistance:	<50mΩ
Operating temperature：	150±5⁰C off
Reset temperature：	135±15⁰C on

Current flows through your lead connection into the crimp terminal, through the member, bimetal disc, and mating contacts. The current completes its path by exiting through the plate member and the integral plate crimp terminal to your lead connection. As the temperature rises, the heat is transferred to the bimetal disc. The disc then snaps open at the factory-calibrated opening temperature, thus breaking the current path. The bimetal disc snaps closed when the reset temperature level is achieved.

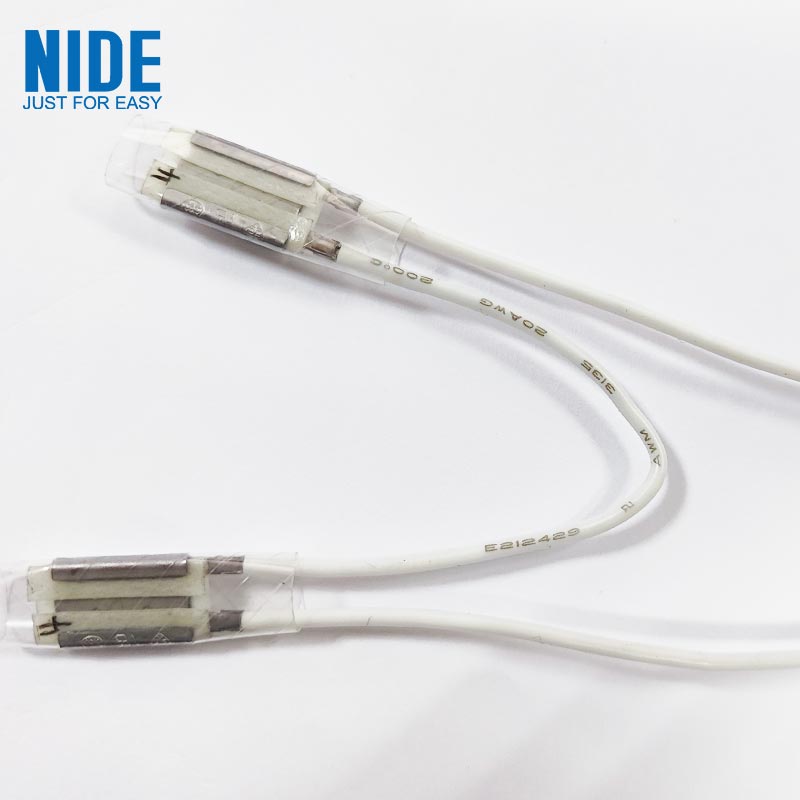

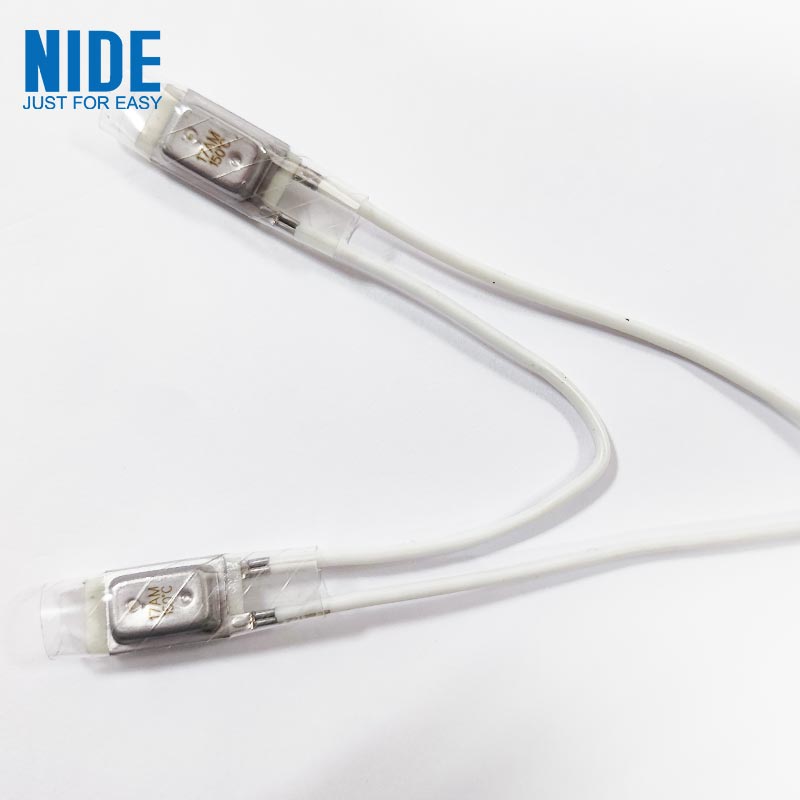

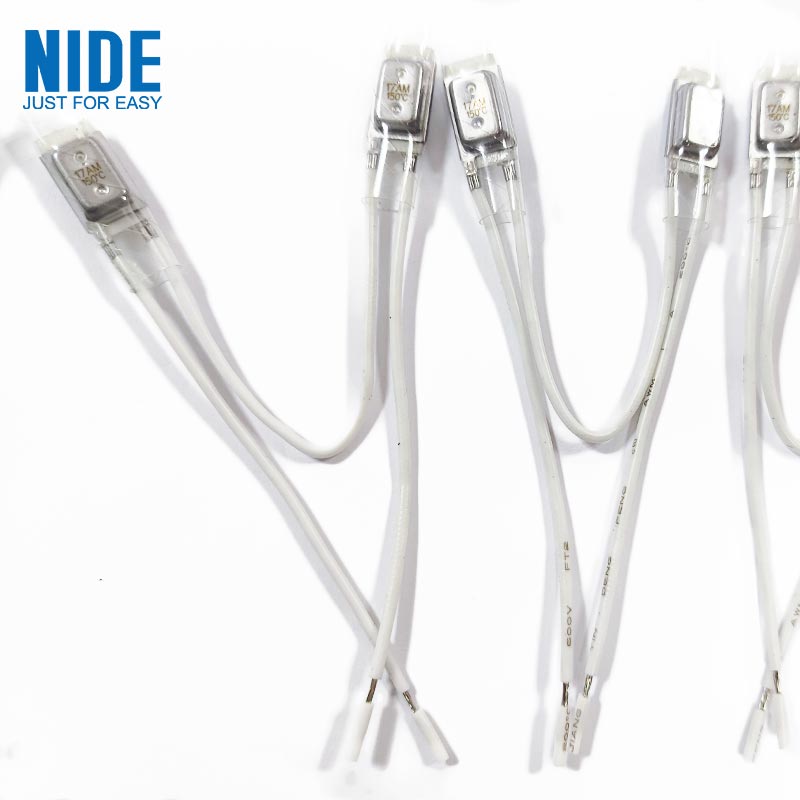

3 Wires 17AM Thermal Protector Picture
