Home Appliance Parts 17AM Thermal Protector

NIDE has a number of engineers with more than ten years of R&D experience, and management and technical personnel with more than ten years of experience in Home appliance parts 17AM Thermal Protector sales, production and technical support, and is committed to creating a professional platform for sales, service and technical support of temperature control products, to provide customers with comprehensive solutions to various product overheating problems.

Send Inquiry

Product Description

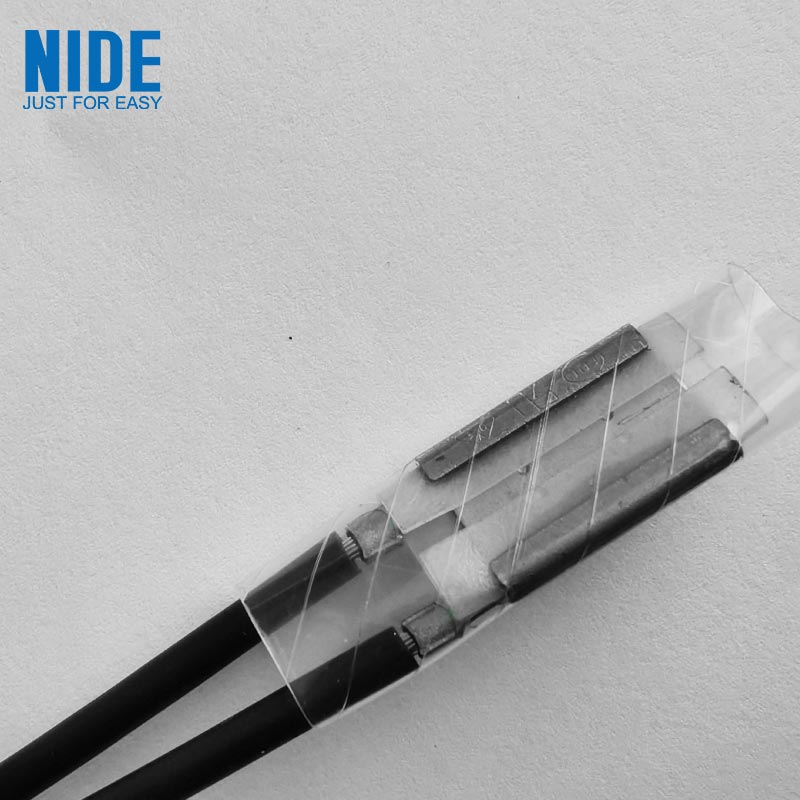

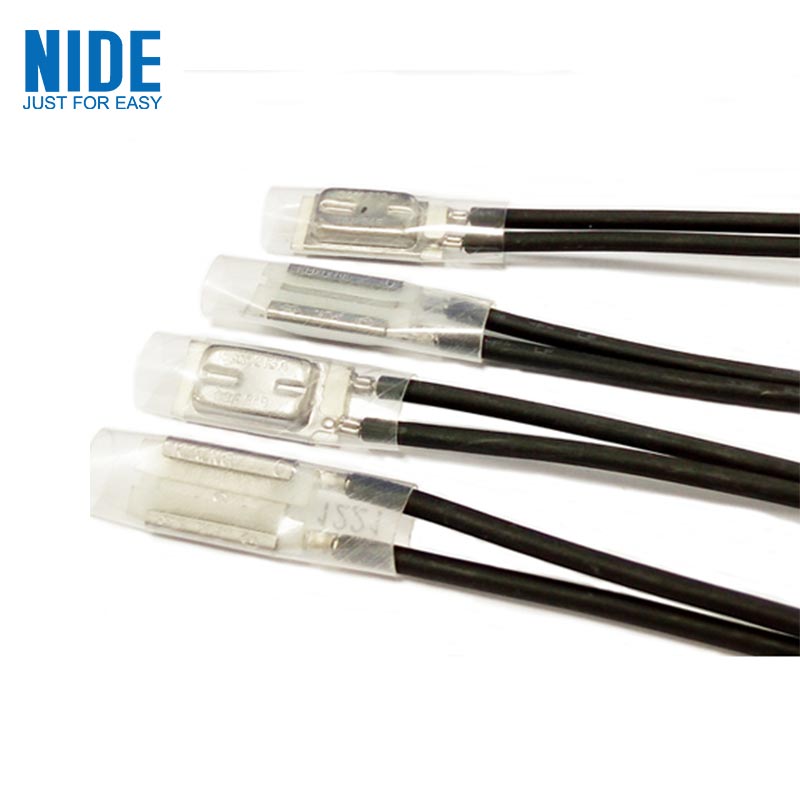

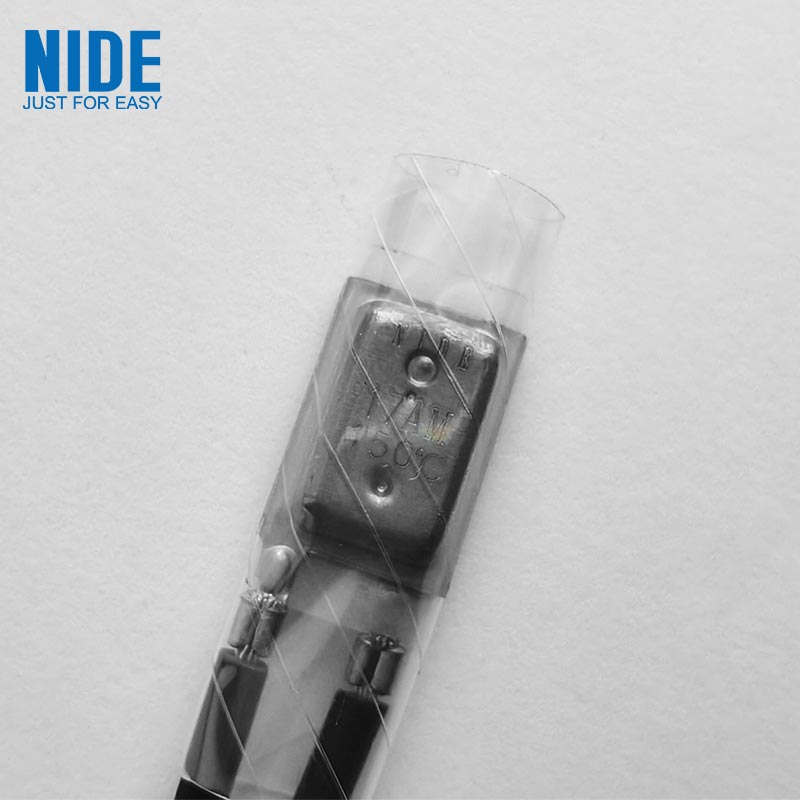

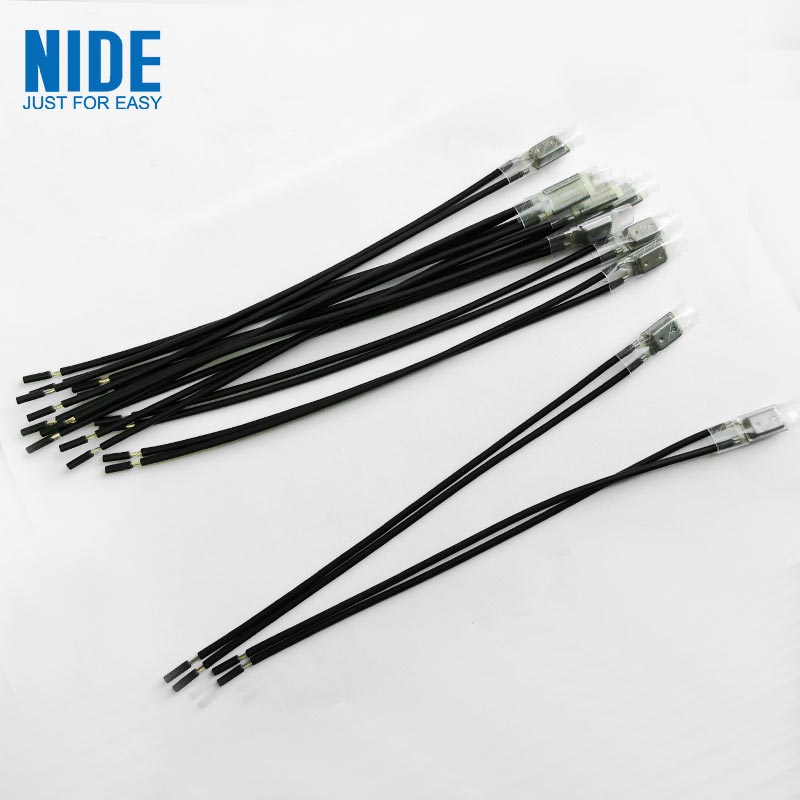

Home appliance parts 17AM Thermal Protector


1.Product Introduction



The Home appliance parts 17AM thermal protector switch is a thermal protection element that uses a special bimetallic reed, a large-capacity contact, a conductive metal shell and a bottom plate to form a control loop. It has the advantages of small size, fast temperature sensing, reliable performance, etc. It can be fully automated in large quantities and is widely used in the field of thermal protection.





2.Product Parameter (Specification)



Product name

17AM Thermal Protector Home appliance parts

Model

17AM

Custom processing:

Yes

Type

Temperature switch

Use

Household appliances, electric motor

Size

Small , can be customized

Shape

SMD

Fusing speed

F/fast

Function

Automatic reset

Voltage characteristics

Safety voltage

Electrical Specification

AC 250V/5A AC 125V/8A

DC12V/10A DC 24V/8A

Maximum voltage

250 (V)

Contact form:

normally open/normally closed

Action range:

20-170 degrees (5 degrees apart is a specification)

Temperature tolerance:

±5, ±7

Contact capacity:

250V/10A 125V/10A

Reset temperature:

the action temperature drops to 15-45℃

Contact resistance:

50mΩ

Electric strength:

AC1500V/1min without breakdown

Durability:

10,000 times.



3.Product Feature And Application


17AM Thermal Protector is widely used in various types of motors, Home appliance parts, transformers, lighting appliances, electric heaters, vacuum cleaners, high-pressure cleaners, submersible pumps, high-pressure water pumps, various electric tools, electric heating pads, heaters and other household appliances, electric heating appliances, Instruments, equipment, new energy batteries, etc.




4.Product Details
