6640 NMN Insulation Paper

NIDE can supply different types of 6640 NMN Insulation Paper for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc.

Send Inquiry

Product Description

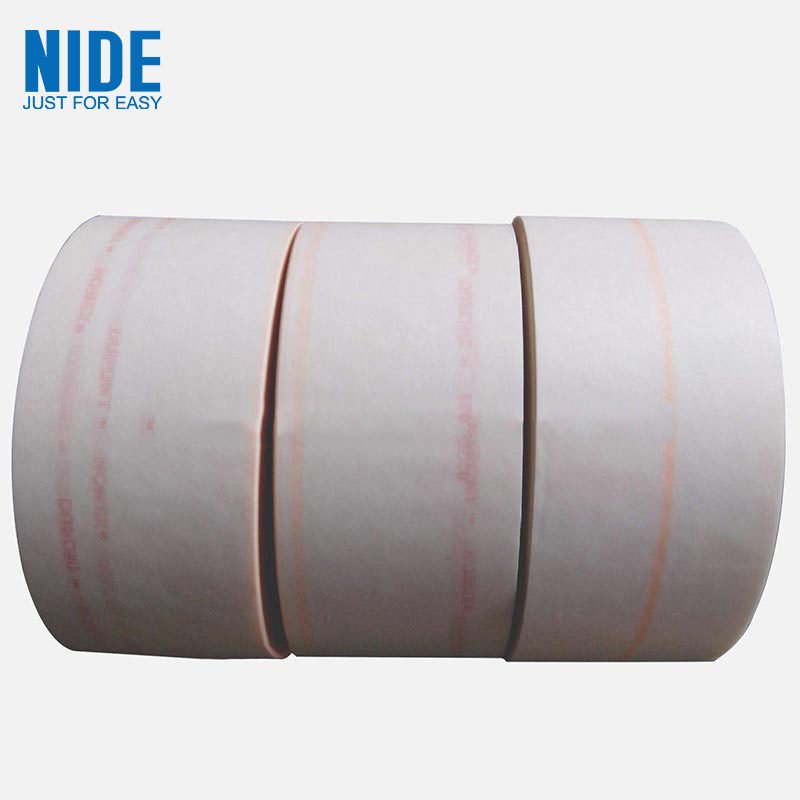

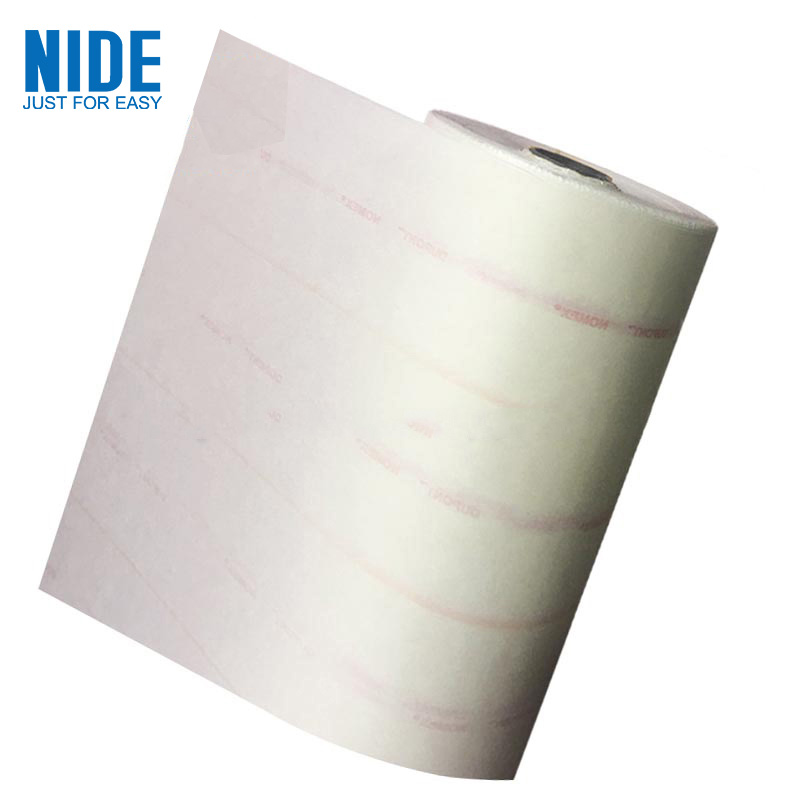

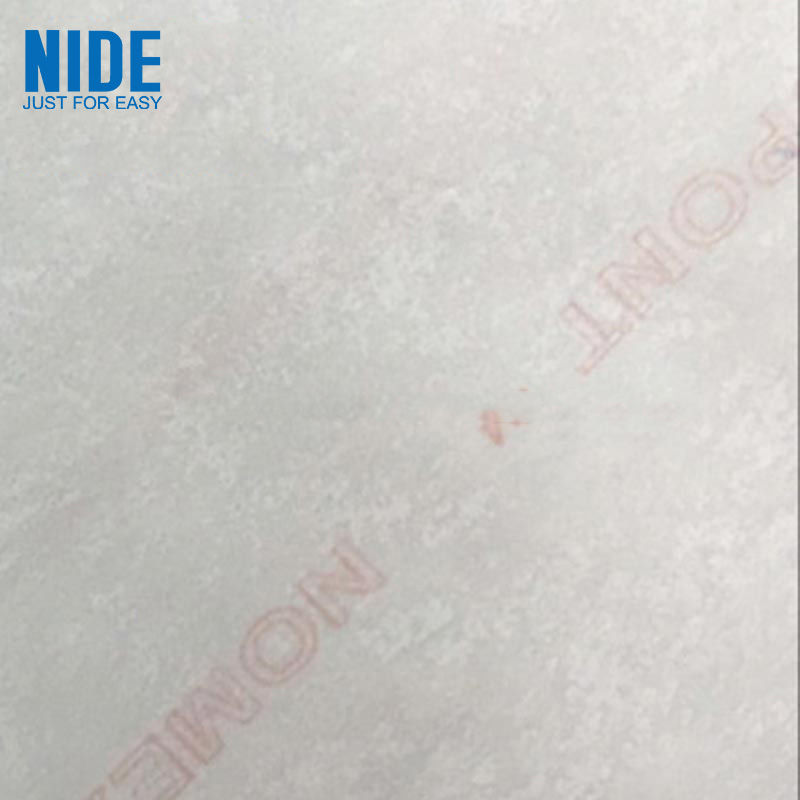

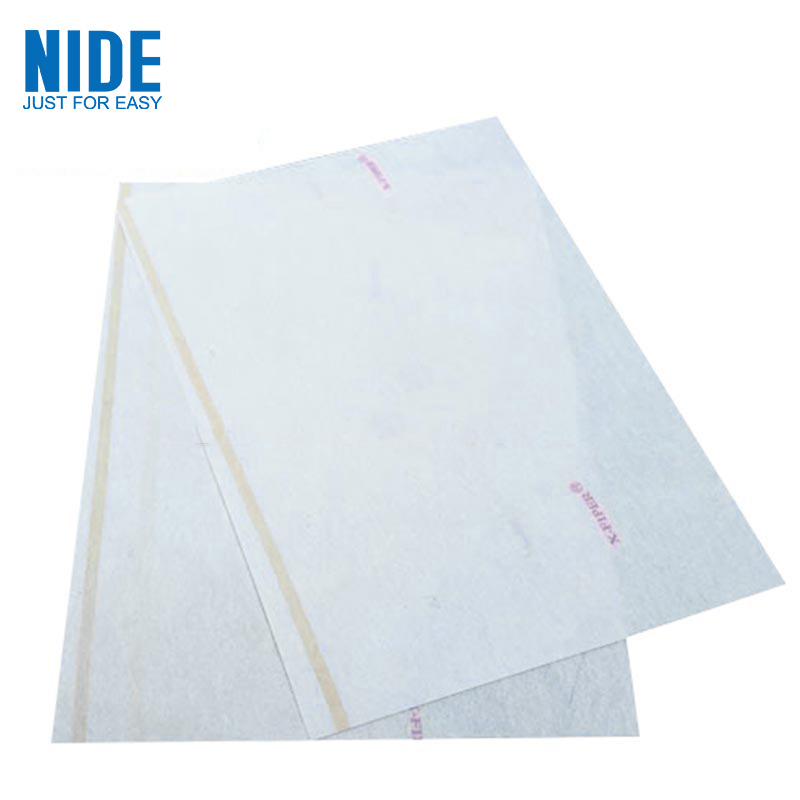

6640 NMN Insulation Paper


1.Product Introduction


The 6640 NMN Insulation Paper is a three-layer soft composite material with a transparent or milky white polyester film on the middle layer and a composite DuPont nomex on both sides. The adhesive used is acid-free and high temperature resistant.This insulation material paper has a heat resistance grade of H (180 ° C), smooth surface, good dielectric properties, flexibility, excellent mechanical strength, tear strength and paint absorption and electrical properties.




2.Product Parameter (Specification)



Product name:

NMN 6640 High temperature electrical insulation   material paper for motor

Model:

NDPJ-JYZ-6640

Grade:

Class H  , 180   ℃

Width:

5-914mm

Color:

White

Normal adhesion

Not layered



Hot adhesion

Not layered,No foaming, No glue (200±2°C, 10min)



3.Product Feature And Application


6640 NMN Insulation Paper is suitable for low-voltage motors, generators, power tools, slot insulation, slot cover insulation and phase insulation, gasket insulation, turn-to-turn insulation and wedge insulation, and can also be used as dry-type transformers and other electrical appliances. Interlayer insulation, end seal insulation, gasket insulation, etc.




4.Product Details


This 6640 NMN Insulation Paper should be stored in a dry, ventilated, clean room environment away from moisture. Transportation and storage time should pay attention to fire, moisture, pressure, and sun protection.
