Flexible Composite NMN Insulation Paper

NIDE supplies various flexible composite NMN insulation paper, such as PET, polyester film, PMP, PM, MPM, DM, DMD, NM, NM, NHN, APA, AHA, etc.
The company's products are widely used in motors, transformers, home appliances, IT and other fields, and are committed to providing first-class products and excellent services to customers around the world.

Send Inquiry

Product Description

Flexible Composite NMN Insulation Paper

1.Product Introduction


Flexible Composite NMN Insulation Paper combines the good impregnation properties of non-woven fabrics with the good dielectric strength of polyester films, and is widely used in electrical equipment.



2.Product Parameter (Specification)



Properties

Unit

Values

Insulation paper thickness

MM

0.13

0.14

0.15

0.18

0.20

0.23

0.25

0.28

0.29

0.35

0.40

0.45

Thickness allowed tolerance

MM

±15

±15

±15

±15

±15

±15

±15

±15

±15

±10

±10

±10

Grammage and dtolerance

GSM

106

126

146

181

216

251

286

321

341

426

496

566

Film thickness

MM

0.023

0.036

0.050

0.075

0.100

0.125

0.150

0.175

0.190

0.250

0.300

0.350

Breakdown voltage

KV

≥4

≥5

≥6

≥7

≥9

≥10

≥11

≥13

≥14

≥18

≥20

≥22

Tensile strength (MD

N/CM

≥50

≥90

≥100

≥120

≥160

≥200

≥230

≥250

≥300

≥350

≥370

≥400

Tensile strength (TD)

N/CM

≥40

≥70

≥80

≥95

≥120

≥150

≥170

≥200

≥200

≥300

≥320

≥350

Tensile strength after   folding (MD)

N/CM

≥35

≥70

≥80

≥95

≥120

≥150

≥160

≥170

≥200

≥300

≥320

≥350

Tensile strength after   folding (TD)

N/CM

≥30

≥50

≥60

≥80

≥100

≥120

≥125

≥130

≥150

≥200

≥220

≥250



3.Product Feature And Application


The Flexible Composite NMN Insulation Paper can be absorbed during the impregnation.

Uniform surface, no fluffing, and no bubbles, pinholes, wrinkles and defects, suitable for mechanical off-line processes. The sizing insulation of Y series motors is used for inter-slot insulation, inter-turn insulation and interlayer insulation of small and medium-sized low-voltage motors, gasket insulation or as interlayer insulation in transformers.



4.Product Details

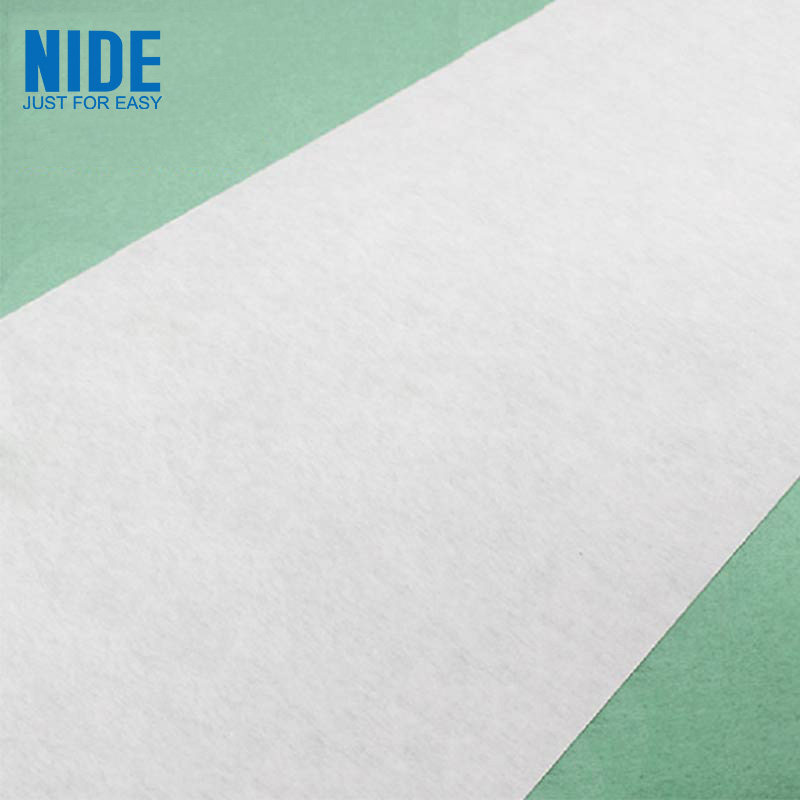

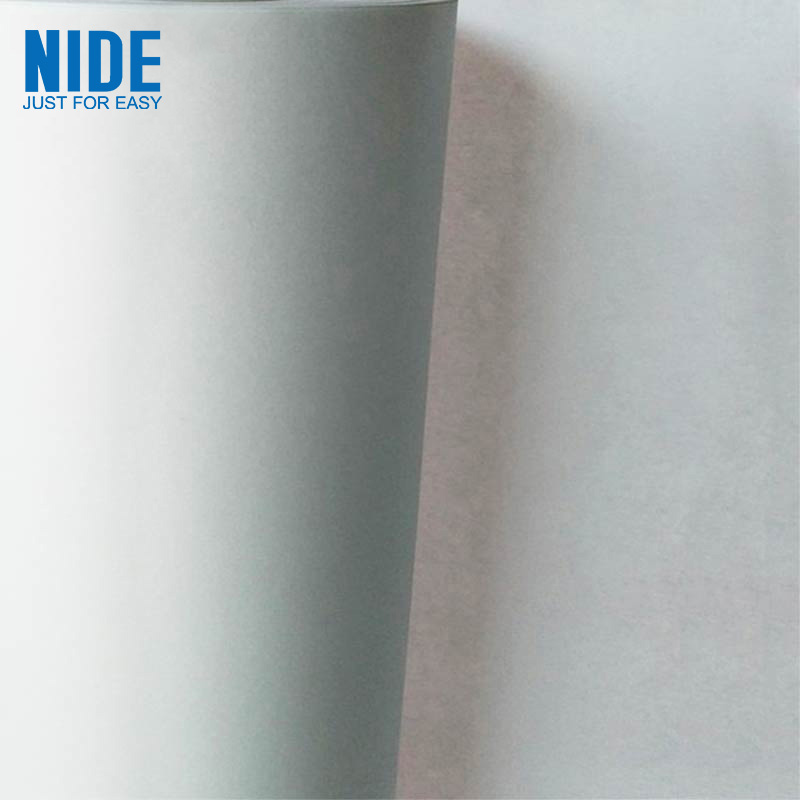

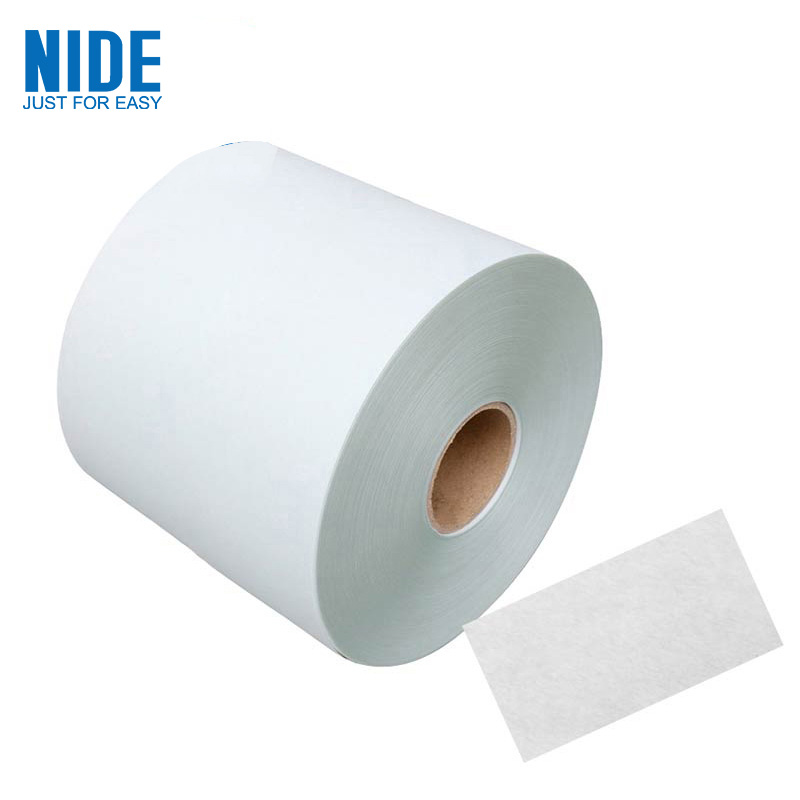

Flexible Composite NMN Insulation Paper.
