Wholesale Motor Electrical 6641 DMD Insulation Paper

Wholesale Motor Electrical 6641 DMD Insulation Paper, also known as highland barley paper, is a common name for cyan thin electrical insulating cardboard. It is made from wood fiber or mixed pulp mixed with cotton fiber, and is manufactured by a certain process. The commonly used colors of thin electrical insulating cardboard are yellow and cyan, yellow is commonly known as yellow shell paper, and cyan is commonly known as green fish paper.

Model:NDPJ-JYZ-1002

Send Inquiry

Product Description

Wholesale Motor Electrical 6641 DMD Insulation Paper


6641 DMD-F insulating material is a solid insulating material made of 6020/6021 transparent or milky white polyester film compounded with electrical non-woven fabric on both sides. Its characteristics are chemical resistance, high temperature resistance, glossy, partially transparent or translucent, light weight and strong. Due to the higher density of solid insulating materials, the breakdown strength is also much higher, and the insulation resistance, dielectric constant and sum of solid insulating materials vary widely. We supply a variety of solid insulation materials for motors, which can isolate different electrical conductors and have a supporting role at the same time.



6641 DMD-F Insulating Paper Material Properties:

1. Chemical resistance

2. Good mechanical and electrical properties, temperature class F (155℃).

3. Most of them are good insulators

4. Lightweight and sturdy

5. Glossy, partially transparent or translucent

6. Wide range of uses, many functions, easy to color, and some high temperature resistance

7. Storing goods can play a moisture-proof effect.

8. It is easy to process and can be mass-produced, and the price is cheap



6641 DMD-F Application Areas:

6641 DMD-F Insulation Material is used in low-voltage motors, power tools, electrical appliances as slot insulation, gasket insulation, inter-turn insulation and slot wedge insulation and interlayer insulation of transformers.



6641 DMD-F Insulation Paper Parameters:

Coil:  Width 1005mm without trimming, trimming 990mm
Material:  Electrical non-woven fabric - polyester film - electrical non-woven fabric (three layers) soft composite material
Sheet:  Any length and width within the range of 990*1000mm
Ribbon:  5mm-990mm
Roll diameter:  not less than 300mm
Die size:  conventional 76mm
Storage:  6641 DMD-F can be stored indefinitely at (20℃, 50% r.h.).

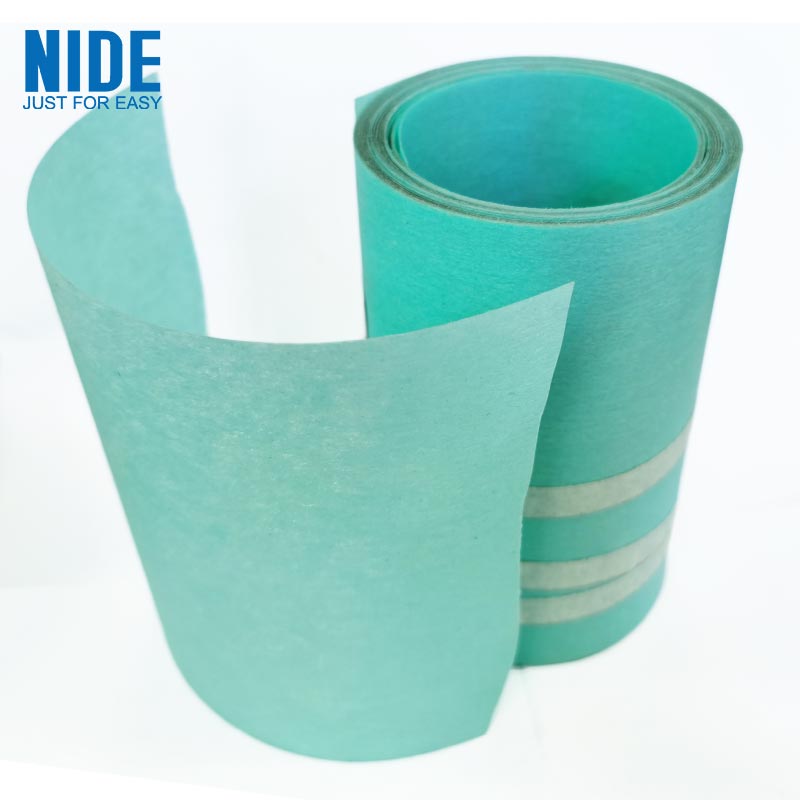

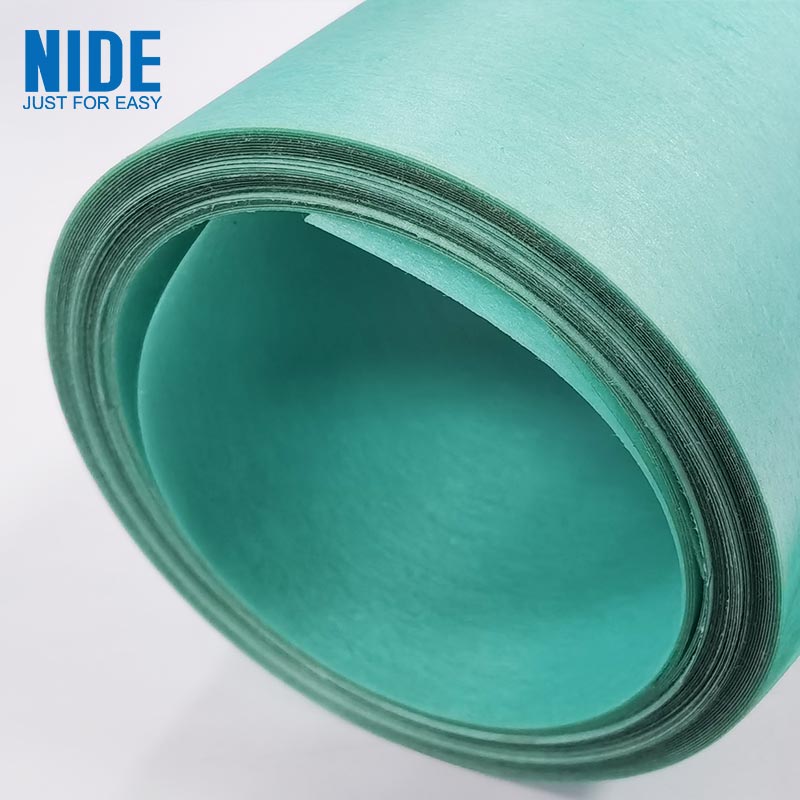

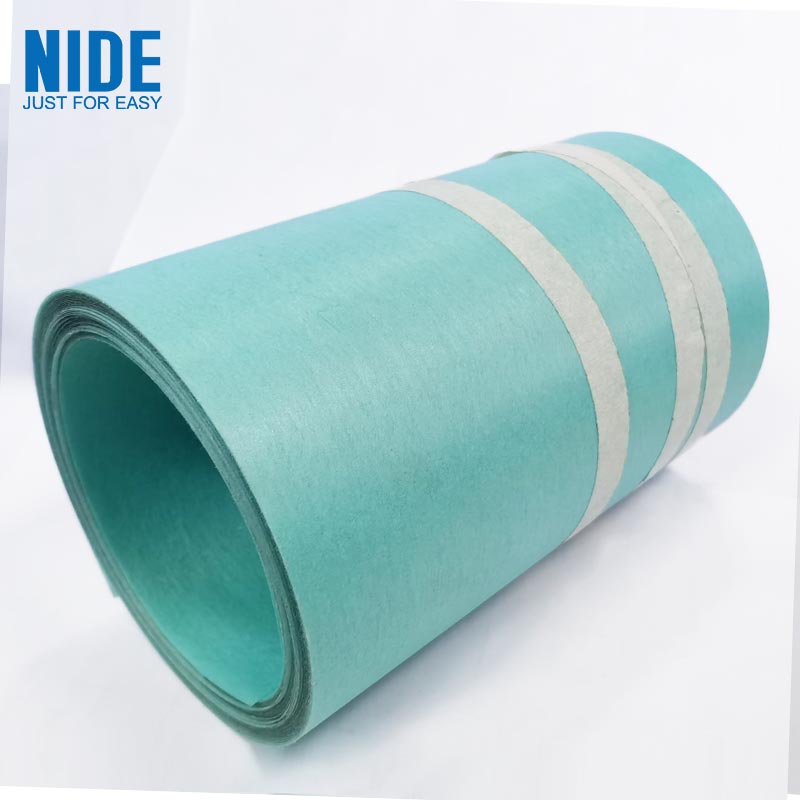

6641 DMD-F Insulation Paper Pictures
