Electrical DMD Insulation Paper

NIDE can produce different dimensions of insulation material as per customer's requirement. There are different insulation material, DMD B/F class, Red Polyester film, Class E, Red Vulcanized Fiber, Class A.The following is an introduction to Electrical DMD Insulation Paper, I hope to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

Electrical DMD Insulation Paper

1.Product Introduction

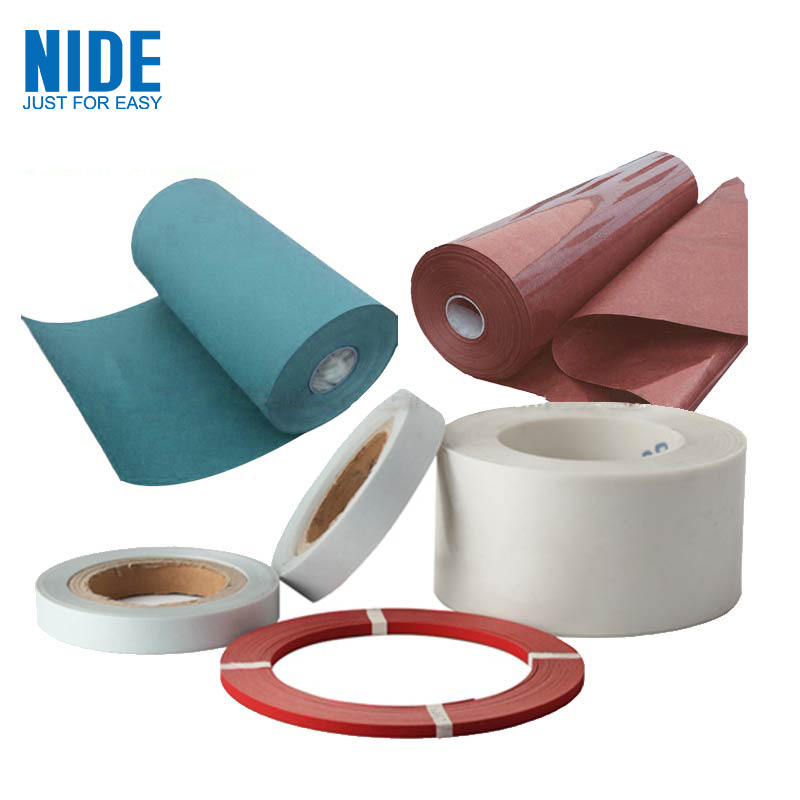

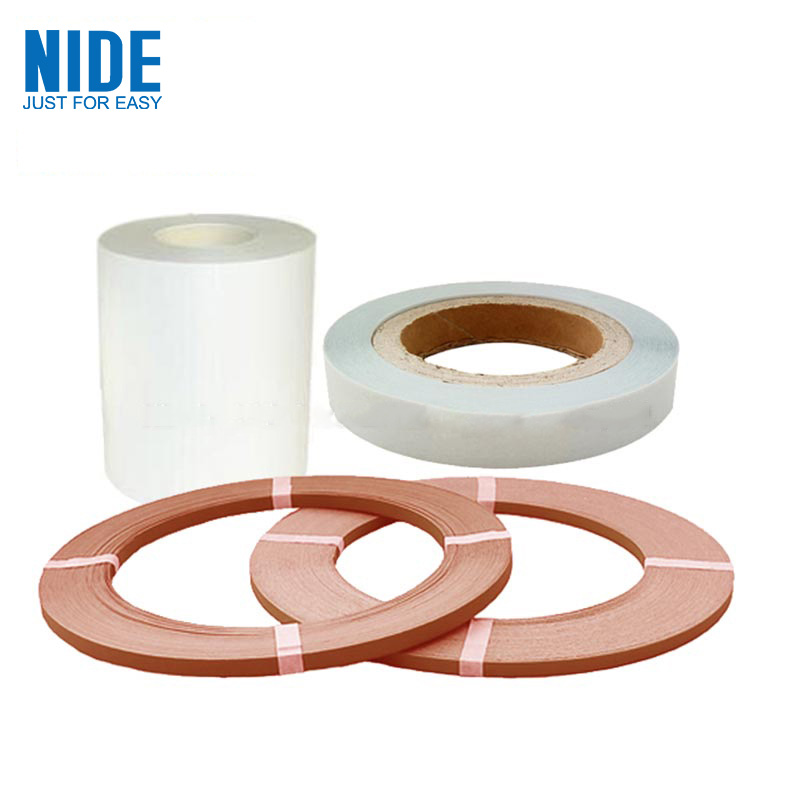

The Electrical DMD Insulation Paper is flexible composite material 6630 DMD electrical insulation paper.This DMD insulation paper is a three-layer composite electrical insulation paper. It is laminated with two layers of polyester fiber non-woven fabric and a single layer of polyester film in the center. The structure is Dacron+Mylar+Dacron, so it is referred to as DMD.

2.Product Parameter (Specification)

PET Class E Specification
Item		Unit	Standard
Thickness		um	100	125	175	188	200	250
Tolerance		%	±3	±3	±3	±4	±4	±4
Tensile strength	vertical	Mpa	≥170	≥160	≥160	≥150	≥150	≥150
Tensile strength	Horizontal	Mpa	≥170	≥160	≥160	≥150	≥150	≥150
Thermal shrinkage	vertical	%	≤1.5
Thermal shrinkage	Horizontal	%	≤0.6
Haze		%	≤2.0	≤2.6	≤3.5	≤4.0	≤4.6	≤6.0
Wetting tension			≥52 Dyn/cm
frequency electric strength		V/um	≥90	≥80	≥69	≥66	≥64	≥60
Thermal class		/	E
Volume resistivity		Ωm	≥1x1014
Density		g/cm³	1.4±0.010
Relative dielectric constant			2.9~3.4
Dielectric loss factor			≤3x10-3
