6644 F Class DMD Insulation Paper For Motor Insulation
6644 F Class DMD Insulation Paper For Motor Insulation
6644 F Class DMD Insulation Paper for Motor Insulation has smooth surface, environmental protection, non-toxicity, non-corrosiveness, heat resistance and high temperature resistance. NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree.
Send Inquiry
Product Description

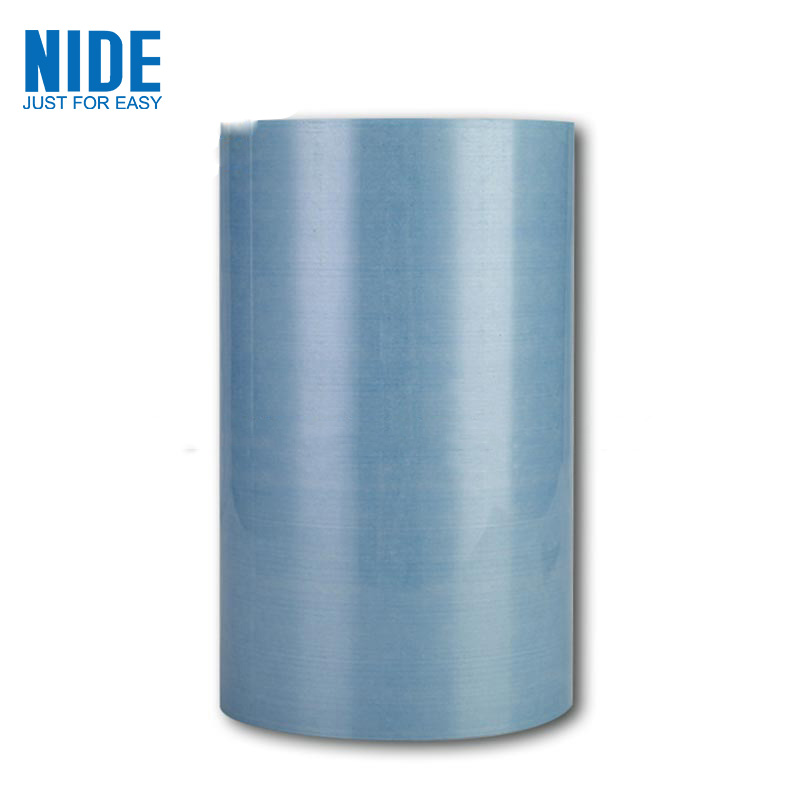

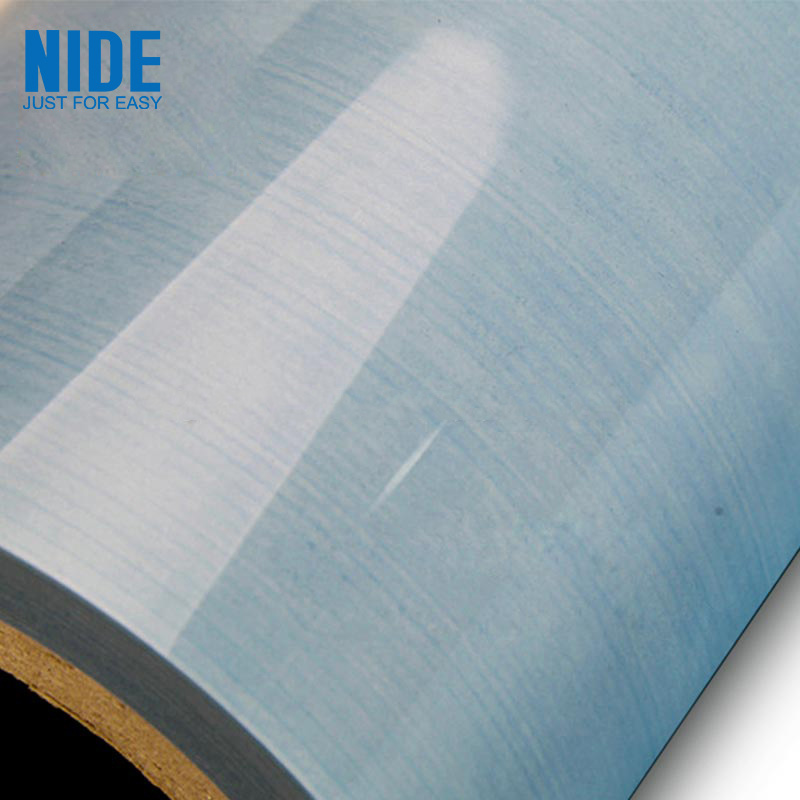

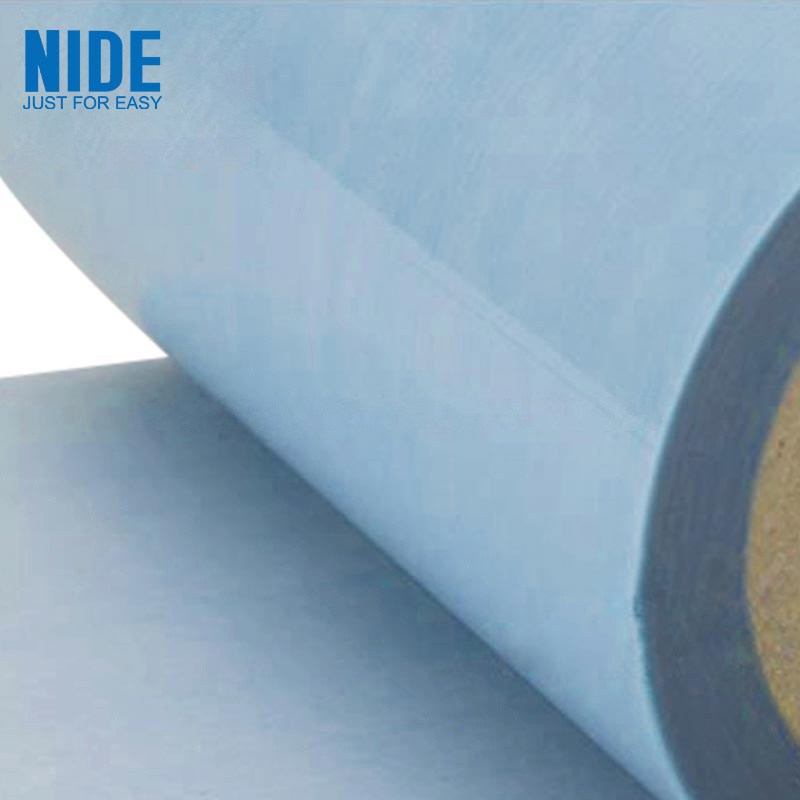

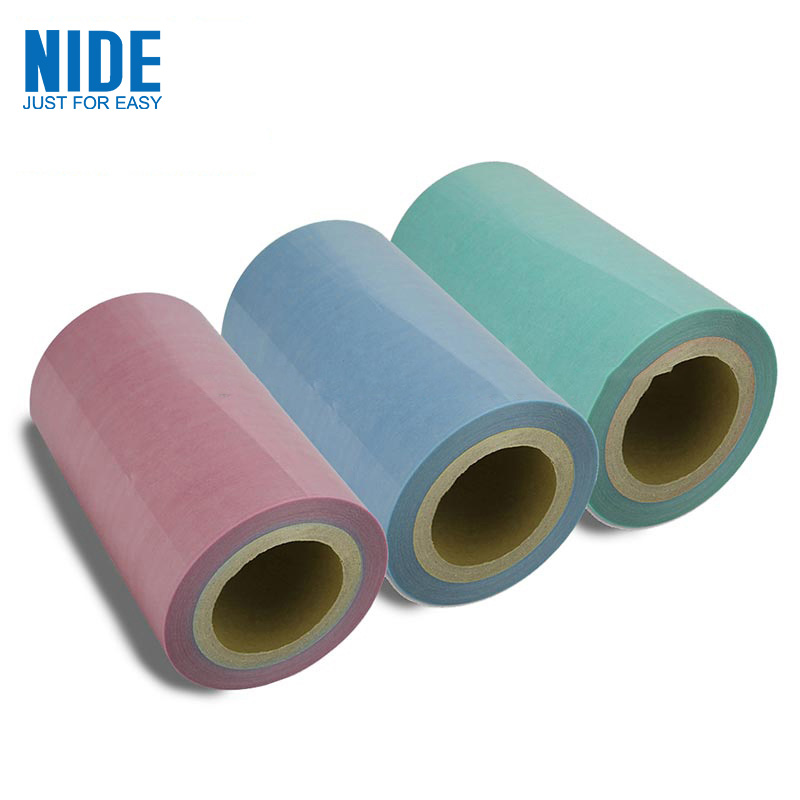

6644 F Class DMD Insulation Paper for Motor Insulation
1.Product Introduction
6644 F Class DMD Insulation Paper for Motor Insulation is a soft two-layer composite material composed of a layer of longitudinal polyester fiber non-woven fabric and a transparent or milky white polyester film bonded with F-grade resin (polyurethane glue). Good impregnation properties of the nonwoven fabric and good dielectric strength of the polyester film.
2.Product Parameter (Specification)
|
Properties |
Unit |
Parameter |
|||||||||
|
Insulation paper thickness |
MM |
0.09 |
0.11 |
0.15 |
0.19 |
0.20 |
0.23 |
0.25 |
0.30 |
0.36 |
0.41 |
|
Thickness deviation |
MM |
±0.01 |
±0.01 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.03 |
±0.03 |
±0.04 |
±0.04 |
|
Grammage and deviation |
GSM |
93±9 |
113±11 |
183±18 |
218±22 |
253±25 |
288±29 |
308±31 |
393±39 |
463±46 |
533±53 |
|
Film thickness |
MM |
0.036 |
0.050 |
0.100 |
0.125 |
0.150 |
0.175 |
0.190 |
0.250 |
0.300 |
0.350 |
|
Breakdown voltage |
KV |
≥5 |
≥6 |
≥9 |
≥10 |
≥11 |
≥13 |
≥14 |
≥16 |
≥18 |
≥22 |
|
Tensile strength (MD) |
N/CM |
≥60 |
≥80 |
≥150 |
≥190 |
≥220 |
≥250 |
≥280 |
≥330 |
≥350 |
≥380 |
|
Tensile strength (TD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥150 |
≥160 |
≥180 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (MD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥165 |
≥190 |
≥240 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (TD) |
N/CM |
≥20 |
≥50 |
≥90 |
≥110 |
≥115 |
≥120 |
≥130 |
≥180 |
≥200 |
≥230 |
3.Product Feature And Application
6644 F Class DMD Insulation Paper for Motor Insulation is used in low-voltage motors, power tools, electrical appliances for slot insulation, gasket insulation, turn-to-turn insulation, phase-to-phase insulation and wedge insulation , or transformer interlayer insulation, suitable for automatic winding machine processing.
4.Product Details
The 6644 F Class DMD Insulation Paper for Motor Insulation can be stored indefinitely at (20 ° C, 50% r. h.).
