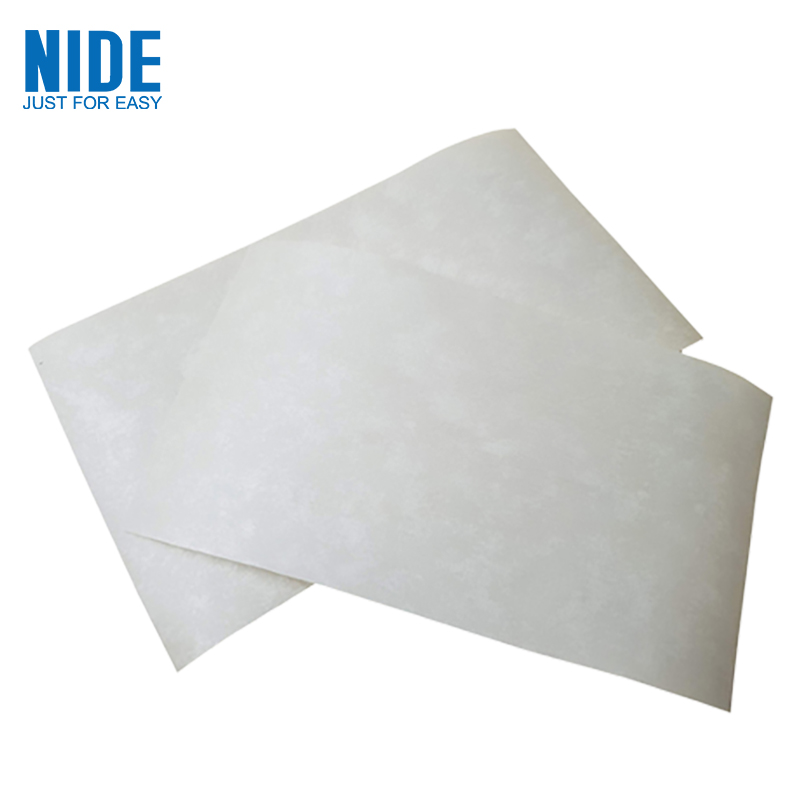

  • Wear Resistant Insulating Paper For Motor Insulation Winding - 0 Wear Resistant Insulating Paper For Motor Insulation Winding - 0

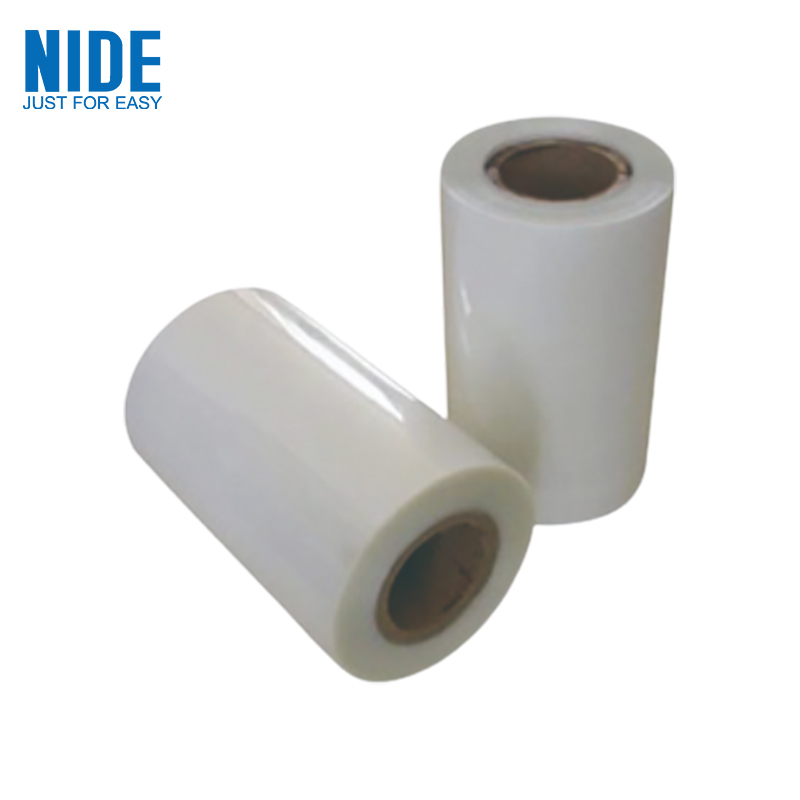

  • Wear Resistant Insulating Paper For Motor Insulation Winding - 1 Wear Resistant Insulating Paper For Motor Insulation Winding - 1

Wear Resistant Insulating Paper For Motor Insulation Winding

Wear Resistant Insulating Paper For Motor Insulation Winding 6632 DM insulating paper is a four-layer soft composite material bonded by polyester film polyester fiber non-woven fabric

Model:NDPJ-JYZ-6632

Send Inquiry

Product Description

Wear Resistant Insulating Paper For Motor Insulation Winding



1.Product Introduction

6632 DM, this Insulation paper is a composite insulating material product made of a layer of polyester film coated with adhesive, one side is composited with polyester fiber non-woven fabric, and calendered, abbreviated as DM.

6632 DM composite material has good mechanical strength, dielectric properties and high heat resistance (Class B), it is the type insulating material for Y series motors, and can be used as slot insulation, inter-turn and inter-layer insulation for small and medium-sized motors , Pad insulation core and transformer insulation. Part of the thickness of this product has been widely sold to Europe, America and Southeast Asia markets.




2.Product Parameter (Specification)

Thickness

0.15mm-0.4mm

Width

5mm-914mm

Thermal   class

B

Working   temperature

130degree

Color

White


3.Product Feature And Application

Used in low-voltage motors Inter-slot and inter-phase insulation, or used as inter-layer insulation in transformers, the material has high stiffness and is suitable for mechanical off-line processes.




4.Information needed for insulation paper inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.
