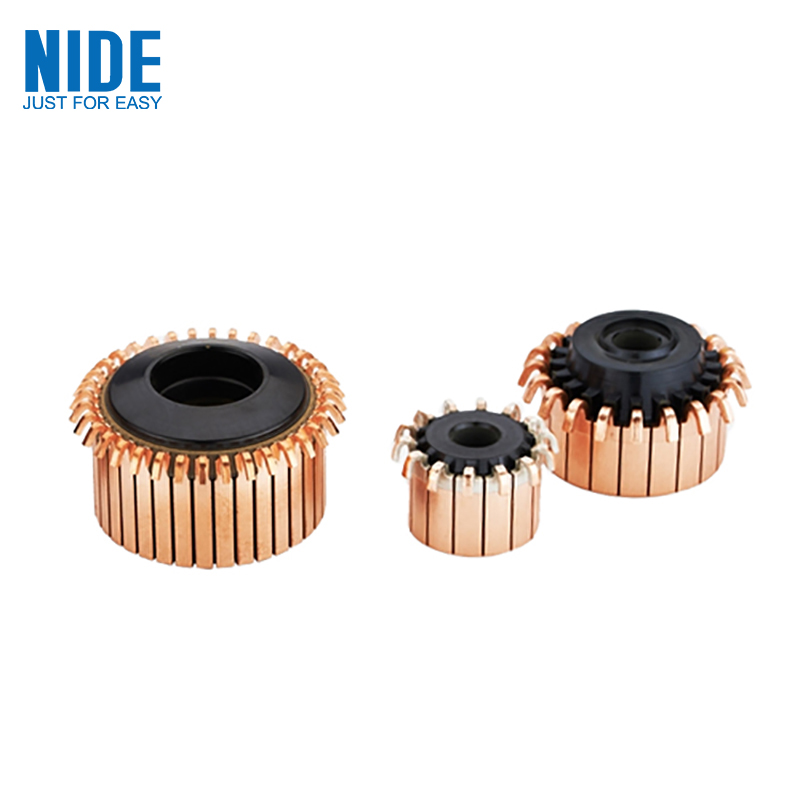

Factory Wholesale 12v Commutator For Power Tools
  • Factory Wholesale 12v Commutator For Power Tools - 0 Factory Wholesale 12v Commutator For Power Tools - 0

Factory Wholesale 12v Commutator For Power Tools

Factory Wholesale 12v Commutator For Power Tools Besides the high emphasis we put on quality during the production process, we also place great importance on detection. We test commutators one by one after production with professional equipments to ensure that there is no possibility of any quality problem.

Model:NDPJ-HXQ-03006

Send Inquiry

Product Description

Factory Wholesale 12v Commutator For Power Tools



1.Techinical Specifications:

To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole( depth: 1.4±0.1, width: 0.5±0.05) should be tolerated.
Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1min, there will be no breakdown or spark.
Spin Test: Under 180±2 ℃, 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003max.
Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.
Besides the high emphasis we put on quality during the production process, we also place great importance on detection. We test commutators one by one after production with professional equipments to ensure that there is no possibility of any quality problem.
We also pay much at attention to the package. All the goods delivered from our factory are of strong packing to get rid of any hurt during the delivery to the warehouse as well as that during the shipment.
We believe that not only the quality, but also the price must be competitive. We are searching and developing new ways and advanced technology all the time to make sure that our products are always with better prices.

- Silver copper with high intension, imported molding compound ,in good quality.
- Good service for every customer.
- Perfect detecting equipment and reliable working condition tester
- Provide qualified OEM services.
- Competitive price and prompt delivery.



Product name: 12v commutator
OD 25.5
ID φ10
Total Height 17
Segment Length 14
Hook/Riser dia. 26.5
Bar No. 24



2.Product Parameter (Specification)


Part  No.

O.D (D)

I.D (d)

Total O D (D1)

Bar No(N)

Bar length (L1)

Total length (L)

JZQE-RS12-148

63

13.2

73

24

16

26.5

JZQE-RS12-148B

63

20

73

24

16

26.5

JZQE-RS12-148C

63

13.2

73

24

16

26.5

JZQE-RS12-149

40

15

43

43

10

18.2

JZQE-RS31-150

44

12.08

23

10

12.5

JZQE-RS31-150B

44

12.35

23

10

12.5

JZQE-RS31-150C

44

12.06

23

10

12.5

JZQE-RS31-150D

44.2

12.08

23

10

12.5

JZQE-RS31-150E

44

12

23

10

12.5

JZQE-RS12-151

47.6

13.2

57

16

14

24.5

JZQE-RS12-151B

47.6

13.2

57

16

14

22

JZQE-RS12-151C

47.6

13

57

16

14

24.5

JZQE-RS12-151D

47.6

13

57

16

14

22

JZQE-RS12-151E

47.6

13.4

57

16

14

24.5

JZQE-RS31-169

38

12.08

26

10

14.3

JZQE-RS12-193

74

33

85

81

12

12

JZQE-RS12-247

19.5

4

7

3

5.5

JZQE-RS12-326

49

13.2

16

14

15

JZQE-RS32-348

58

24.1

25

JZQE-RS32-464

20.5

5

25

8

5.7

8.5

JZQE-RS32-464B

20.5

5

24.7

8

5.7

8.5

JZQE-RS32-464C

20.5

5

24.7

8

5.7

8.5

JZQE-RS32-464D

20.5

5

25

8

5.7

8.5

JZQE-RS32-464E

20.5

5

25

8

5.7

8.5

JZQE-RS12-480

78

23

25

13

23

JZQE-RS32-508

20.5

3.175

25

8

4.2

8.5

JZQE-RS31-525

44.2

12.08

23

10

13

JZQE-RS31-525B

44.2

12.35

23

10

13

JZQE-RS31-525C

44.2

12

23

10

13

JZQE-RS32-555

20.5

3

24.7

8

5.7

8.6

JZQE-RS12-593

71.5

13.2

64

24

28

32.5

JZQE-RS11-608

52.5

16

19

6.5

16

JZQE-RS11-608B

52.5

16

19

6.5

16

JZQE-RS32-618

23

4

28.5

10

6.5

10

JZQE-RS32-618B

22.5

4

28

10

6.5

10

JZQE-RS32-651

47.6

13

56.5

16

12.5

18.5

JZQE-RS32-664

48

13.4

57.5

16

12.5

24.5

JZQE-RS12-688

59

24.1

58

25

34.9

22

JZQE-RS12-689

59

24.1

58

25

34.9

19.5

JZQE-RS32-717

47.6

13.3

56.5

16

12

24.77

JZQE-RS32-739

44.2

13.8

23

10

13

JZQA-RS12-752

31

11.5

40

21

25.5

28

JZQB-RS31-792

61

13.5

29

9

16

JZQE-RS31-796

44.2

9

23

10

12.5

JZQE-RS12-846

48.5

10.2

48.5

25

6

11

JZQE-RS32-854

47.6

13.2

56.6

16

7

22

JZQE-RS12-907

48.5

10.2

48.5

25

6

10

JZQE-RS12-926

64

20

60

31

5

17


3.Product Feature And Application

This commutator is used in AC motor, single phase motor, automobile motors, motorcycle starter motors, power tool motors and micro special motors.



4.Product Details

Single motor commutator for AC motor
