Armature Commutator For Power Tools

NIDE is specializing in the production of Armature Commutator for Power Tools in China, the product specifications are n20, n60, 280, 370, 365, 380, 550, 555, as well as various commutators on series motors, and can also be customized according to customer needs.

Send Inquiry

Product Description

Armature Commutator for Power Tools



1.Product Introduction


This Power Tools Armature Commutator is a kind of micro motor commutator with long service life. The center of this commutator has a spindle through hole. The commutator is divided into large diameter section, middle diameter section and small diameter section. Several commutator segments are fixed on the segment, and insulating parts are arranged between the commutator segments.




2.Product Parameter (Specification)


Model

Outer Diameter

Inner Hole

Slot Width

Hook Foot Length

Slot Number

Copper Height

Total Height

365

5.6

2.3

0.35

1.6

5

7.5

12

365

5.6

2.3

0.4

2

5

8

12

385

5.6

2.3

0.4

1.6

5

7.5

11.4

380

5.6

2.3

0.4

2.5

3

8

12

380

5.6

2.3

0.4

2

3

8

11.4

555

7.6

3.175

0.45

2.5

5

10.5

17.3

545

7.6

3.175

0.45

2

5

10.5

13.5

550

7.6

3.175

0.45

3.5

3

11.5

16.8

280

4.2

2

0.3

2

3

6

10

775

10

5

0.5

3.5

5

14

22.5


3.Product Feature And Application


The surface of Power Tools Armature Commutator segments is provided with a tungsten and molybdenum anti-oxidation coating, which is suitable for the interior of general micro motors and used as motor commutators.




4.Product Details

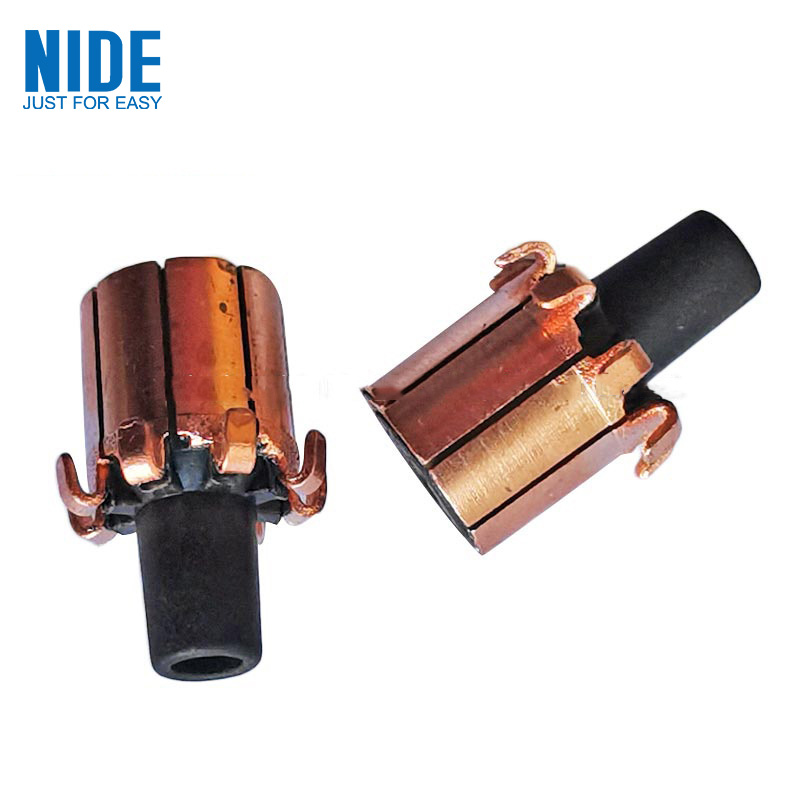

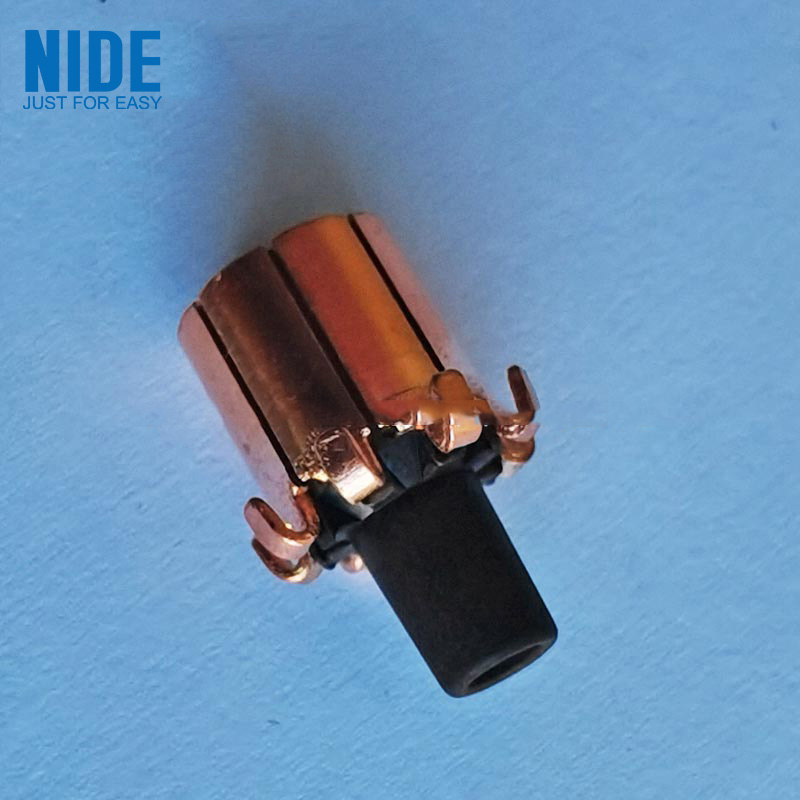

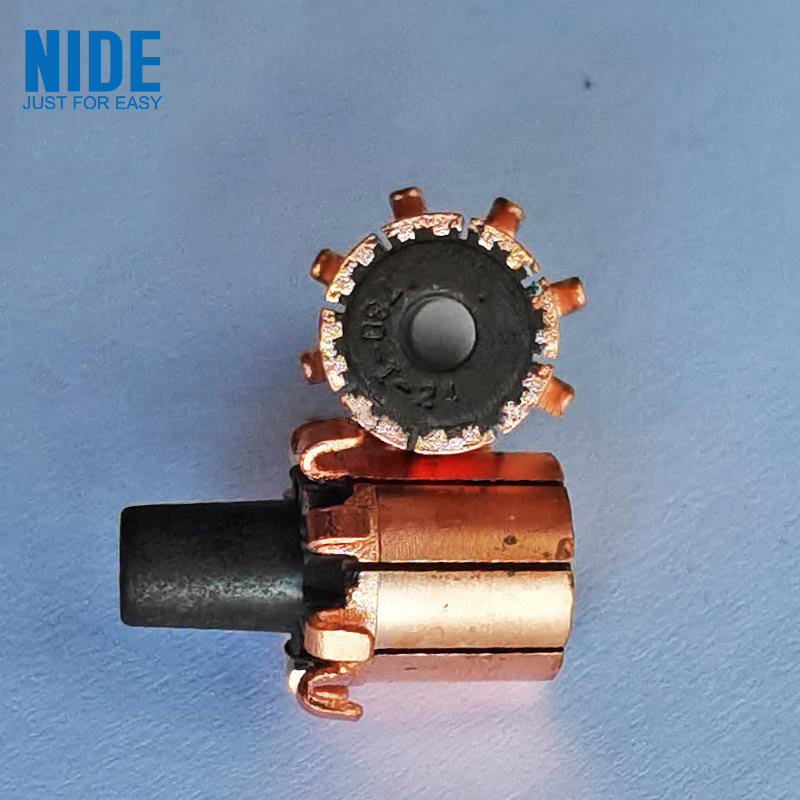

Power Tools Armature Commutator
