Commutator For Drill
  • Commutator For Drill - 0 Commutator For Drill - 0

Commutator For Drill

Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.The following is an introduction to Commutator For Drill, I hope to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

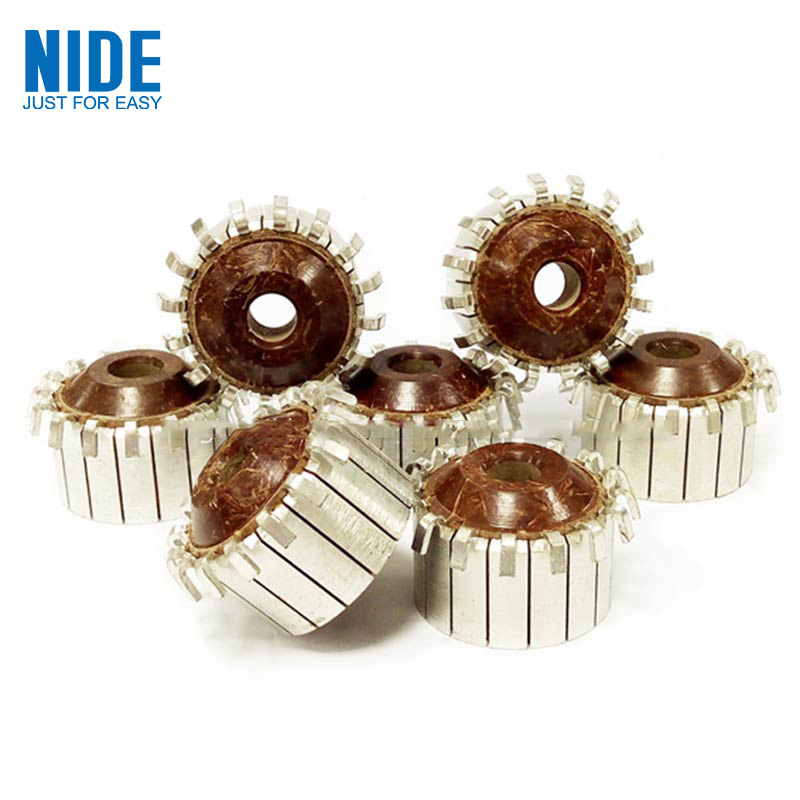

Commutator for Drill



1.Product Introduction


1. Drill Insulation Commutator resistance: 500V, more than 50MΩ

2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.

3. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.



2.Product Parameter (Specification)


Materials

0.03% or 0.08% sliver copper or customized

Dimension

Customized

Commutator type

Hook type/Raiser type

Application

apply to automotive industry, power tools, household appliances, and other motors

Package

Suitable for land and sea transportation

Production capacity

1000000pcs/month



3.Product Feature And Application


The Drill Commutator is suitable for Universal, Industrial, Household Appliances, Car, Power Tools, Electric Bikes& Motorcycles.



4.Product Details


Commutator for Drill
