Segment Commutator For Power Tools

Our Segment commutator for Power Tools has sufficient stock and reasonable price, and samples can be provided.
NIDE is a professional manufacturer and supplier of commutators in China, and its products are widely used in the automotive industry, household appliances, power tools and other fields. We provide OEM service, we can make commutator according to your samples and drawings. Welcome your inquiry and visit!

Send Inquiry

Product Description

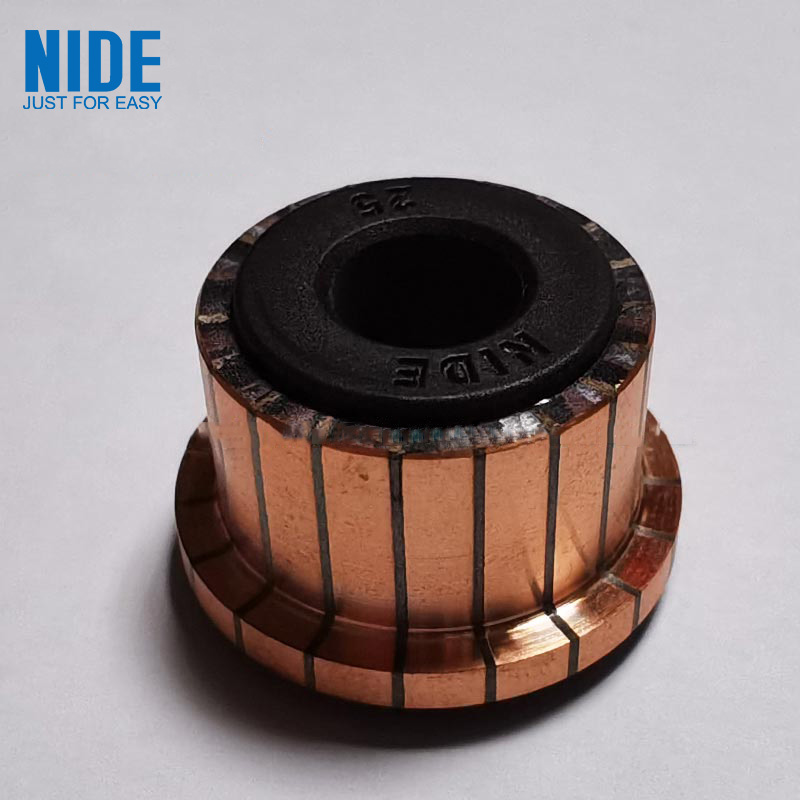

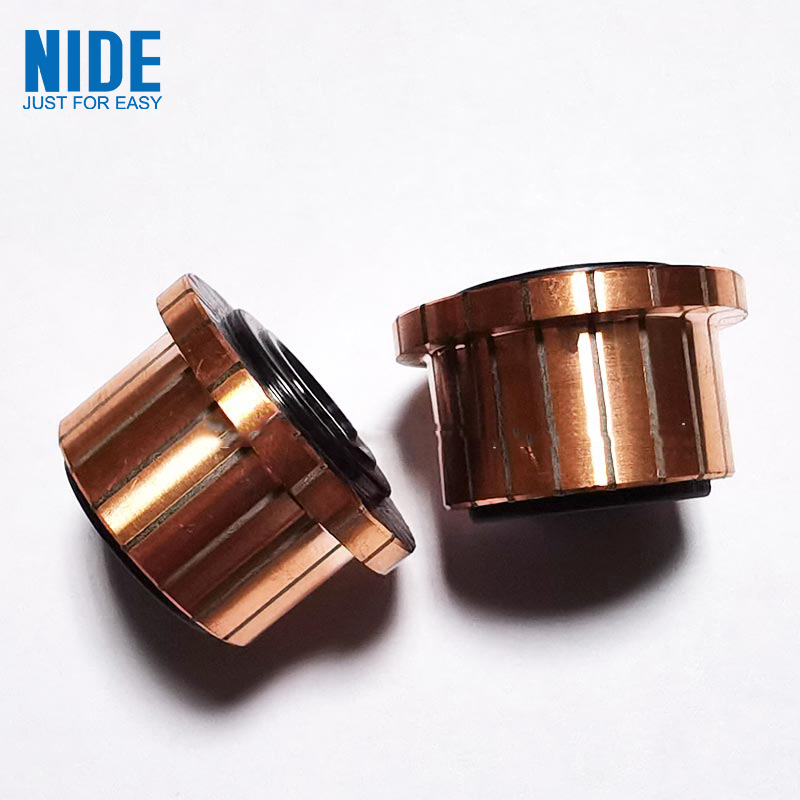

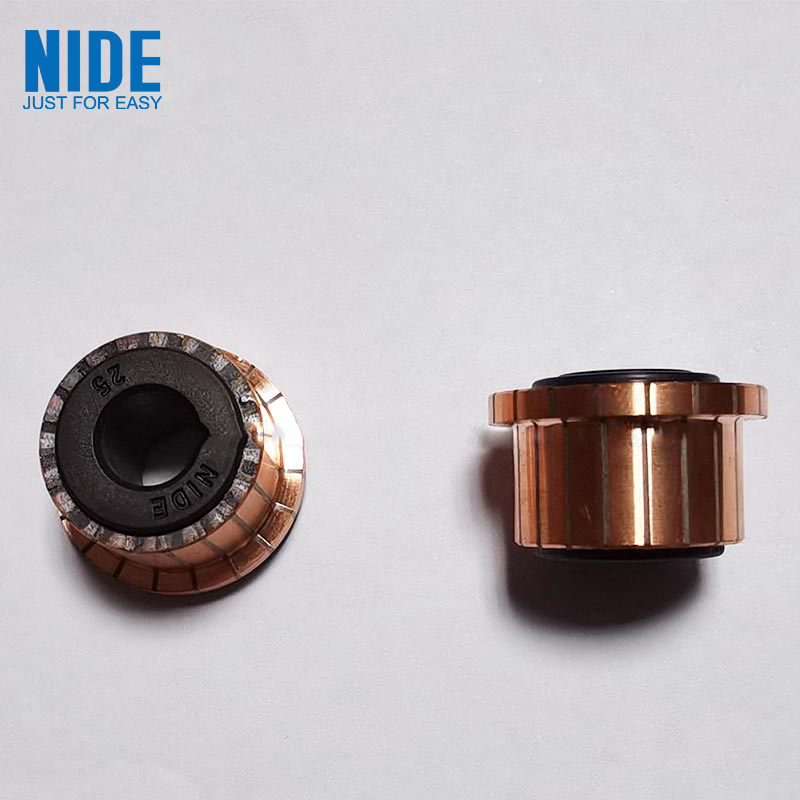

Segment commutator for Power Tools

1.Product Introduction

The Power Tools Segment commutator includes a plastic base and a slot type commutating copper sheet. The top of the slot type commutating copper sheet is provided with a welding wire step. The adjacent slot type commutating copper sheets are insulated and isolated by mica sheets. The center has an upper cylindrical inner hole and a lower cylindrical inner hole coaxially arranged, and the hole diameter of the upper cylindrical hole is smaller than that of the lower cylindrical hole,

2.Product Parameter (Specification)

Model No.	OD(mm)	ID(mm)	Total height(mm)	Segment Length(mm)	Hook/Riser dia.(mm)	Bar No.
DZQC-RZ32-067	22.4	φ10	17	14.7	27.5	24
S-03067A	22.4	φ12	17	14.7	17.4	24
S-03068	28.5	φ12	17.5	14	29.5	24
S-03068A	29.5	φ12	17.5	14	29.7	24
S-03069	28.5	φ12	18.5	16	22.5	24
S-03070	37.5	φ13	27	24.2	45.5	32
S-03071	35.5	φ13	27.5	23	37.2	32
S-03074	28.3	φ12	20	17	29	24
S-03079	23	φ8	19	19	30.8	12
S-03080	20.5	φ10	15	14.1	26	10
S-03081	32.5	φ15	32.5	28	46	25
QZQA-RZ12-081A	32.5	φ15	32.5	28	46	25
S-03082	18.5	φ8	14	13.5	24	12
S-03082A	18.5	φ8	14	13.5	24	12
S-03083	23	φ9	15	13	24	24
S-03083A	23	φ10	15	13	24	24
S-03084	23.2	φ8	17.5	17.3	30	14
S-03085	22.5	φ8	16	15	28.5	10
